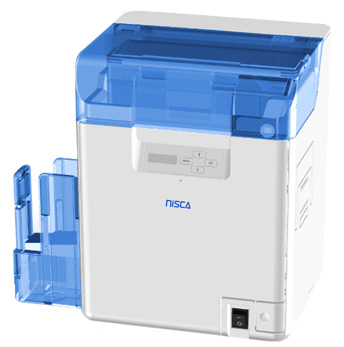

Nisca PR-C201 Retransfer Dual Sided ID Card Printer

Nisca PR-C201 Retransfer Dual Sided ID Card Printer

Vendor: Nisca View brochure
Low Price Guaranteed

Encoding

# Name: Qty
PR-C201 Nisca PR-C201 Retransfer Dual Sided Not Included
PR-C201-CIC-100 Nisca PR-C201 Retransfer Dual Sided USB IC Chip Encoder
PR-C201-OMK5127 Nisca PR-C201 Retransfer Dual Sided OMNIKEY 5127 Contactless Encoder
PR-C201-D24NISOMK302 Nisca PR-C201 Retransfer Dual Sided USB OMNIKEY 5321 Contactless (MiFARE/DESFIRE_iCLASS) Combo
PR-C201-PR5361GMDA Nisca PR-C201 Retransfer Dual Sided 3-Track ISO Magnetic Encoder

Description

The Nisca PR-C201 retransfer ID card printer (item#: PR-C201) is a dual-sided solution designed to deliver stunning ID cards and badges. Retransfer technology allows you to print on the entire surface of the cards, or on uneven surfaces such as smart cards or ABS, PET, PVH and Polycarbonate cards.

The print quality of the Nisca PR-C201 ID card printer is astonishing: 600 dpi, 24-bit images for flawless colors. Not only do you get perfect badges but you get them at the amazing speed of 145 color cards per hour! For an even faster throughput, the printer is equipped with 250-card input and output hoppers.

Loaded with easy-to-use features, the Nisca PR-C201 offers an LCD display for instant printer status, quick-change ribbon cassettes and easy cleaning. It also comes standard with Ethernet connectivity to operate the printer over a network.

Specifications

Function: Double-sided printing (full color)

Print system: Indirect transfer system

Print media

  • Material: PVC, PET, PET-G
  • Thickness: 0.76-1.00 mm

Size: according to CR-80 standards

Print quality: 600 dpi Over-the-Edge

Print tones

  • Input tones: RGB, 256 tones/color, K2 tones
  • Output tones: YMC 256 tones/color, K2 tones + 256 tones

Print area: 3.404" × 2.125" (86.5 mm × 54 mm)

Print time: 145 cards/hour using 4 colors single side printing

Ink ribbon

  • R-YMCK Ribbon (Overcoating Colors - 4 colors)
  • R-YMCKK Ribbon (Front: Overcoating Colors/Reverse: Monochromatic - 5
  • colors)

Transfer Film: R-InTM1 (film)

Warranty:

  • 5 Year Warranty (Limited Lifetime Print Head Warranty)
  • 2 Year HOTSWAP

Card feeding system

  • Automatic feed from the Card Case (250 card auto feed)
  • Manual feed

Interface

  • USB2.0
  • Ethernet 100BASE-TX, IEEE802.3u (Operation guaranteed)
  • USB2.0 × 1 (Port for extended users)
  • RS-232C × 2 (Port for extended users)

Supported OS

  • Windows XP (32 bit), Windows Vista (32 bit),
  • Windows 7 (32/64 bit), Windows Server 2008 R2 (64 bit)

Power source: AC90/120, 220/240 V, 50/60 Hz

Power consumption: Less than 300 W

Operating noise

While operating: less than 53 dB

While waiting: less than 45 dB

Dimensions: 17.1" (H) × 13.4" (W) × 11.7" (D) (435 mm x 340 mm x 297 mm)

Weight: 42.9 lb (19.5 kg)

Operating environment

  • Temperature: 50 to 95°F/10 to 35°C
  • Humidity: 20 to 80% RH (without condensation)

Features:

  • 24Bit Color, 256 Grey scale
  • 64MB Memory
  • Card standards: 20 to 50mil thickness Password authentication
  • Password authentication
