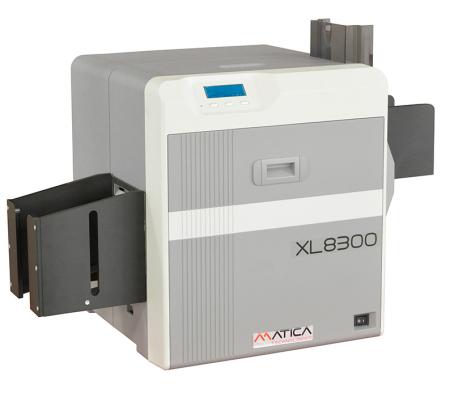

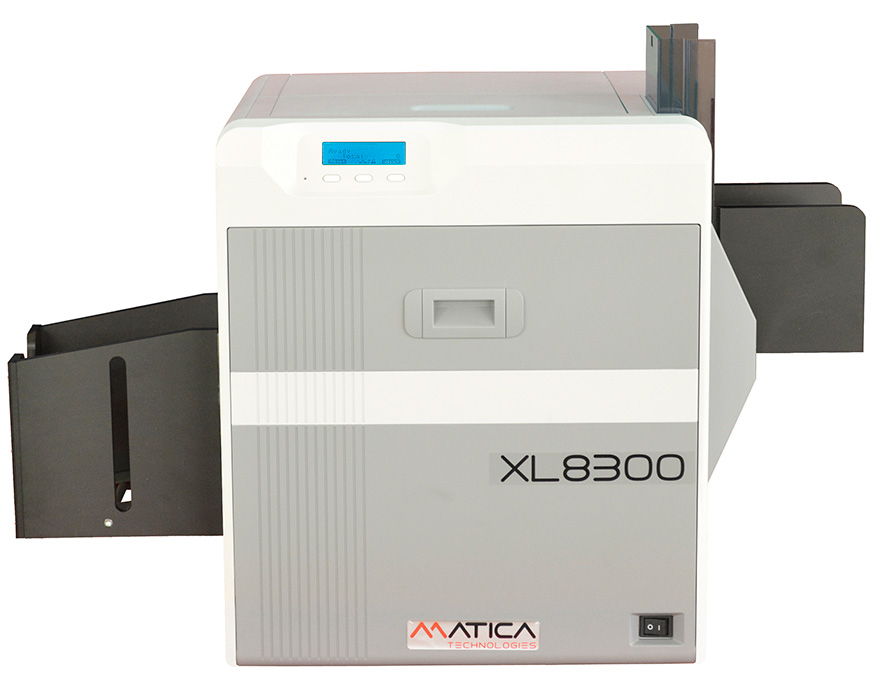

Matica XL8300 ID Card Printer

Matica´s XL8300 retransfer printer is a unique solution designed to issue high quality oversized cards for the event management industry.

Engineered to print up to 128 full color cards per hour, the XL8300 comes with a 100 input and output hopper and personalizes cards that are 3.37” x 4.88”.

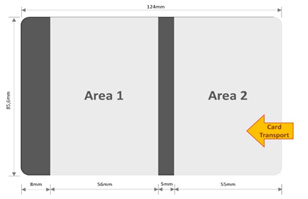

Each card has 2 printable areas that can easily be customized for perfect badges.

The XL8300 can print text, logo and images in UV ink and prints on a range of card materials including PVC, ABS and PET.

Optional contactless encoding is available.

Supported OS include Windows XP SP3 (32 bits), Win 7, Win 8, and Win 8.1 (32 & 64bits).

The XL8300 features a warranty of 36 months or 100,000 prints (whatever comes first). Lifetime warranty on the printhead is offered.


Specs:

Print Method

  • Dye-sublimation retransfer (YMCK) / Thermal transfer (Monochrome “K”)

Print Mode

  • Single side retransfer printing on oversized cards

Print Resolution

  • 300 dpi

Print Speed

  • Up to 128 cards per hour

Printhead

  • Lifetime warranty (using EDIsecure® materials)

Card Types

  • PVC, ABS, PET

Card Thickness

  • 0.25 - 1.02 mm (hopper adjustment required)

Input Hopper Capacity

  • 100 cards (0.76 mm)

Output Hopper Capacity

  • 100 cards (0.76 mm)

Interface

  • USB 2.0 and Ethernet

Operating System Support

  • Support Windows XP, 7, 8

Power Supply

  • 100/120 V and 220/240 V, 50/60 Hz FCC, CE, UL, GOST-R, and CCC approved

Operating Environment

  • 15°C to 30°C, 35% to 70% noncondensing humidity

Printer Dimensions

  • 549 x 322 x 411 mm (WxDxH) (Incl. oversized card feeder and hopper)

Weight

  • 15.6 kg (excluding optional built-in items)

Whitepaper: How to Choose an Oversized ID Card Printer

Whitepaper: How to Choose an Oversized ID Card Printer

From hosting a conference to inviting your clients to a golf outing, companies use events to get their brand front and foremost. Corporate events are a great tool to build unique relationships with your customers while making a lasting impression on them. In addition, have you discovered the benefits of tradeshows? Not only can you test new products at trade shows, but you get access to a large population of your ideal customers which results in a lower cost per sale.

What is the common denominator between all these different types of events? Your attendees, staff and sponsors will all need badges. And as the event planner, you will need an easy way to print these badges on demand. This white paper helps you determine the types of badges you need and the best way to produce them. We will look at customization, efficiency, and convenience when considering an oversized ID card printer for your next event.
