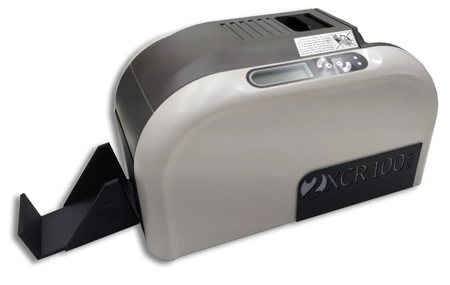

XCR100 2.0 ID Card Printer

The 2XCR100next personalizes oversized badges in the proven CR100 format (2.63" x 3.88"). The device delivers high speed in a compact footprint, producing up to 180 full-color cards per hour. In monochrome, output increases to 1,400 cards per hour.

Preprinting the cards is recommended. By personalizing CR100 cards that already include a preprinted frame, you can create highly recognizable, professional large-format badges ideal for hospitals, event venues, security organizations, military installations, and other high-security environments.

The 2XCR100next supports multiple add-on modules that can be installed as needed. Available options include a duplex module for two-sided printing in a single pass, an Ethernet module for network operation, and encoding modules for contactless RFID technologies.

In addition to YMCKO and standard black monochrome ribbons, a wide range of other monochrome ribbon colors is available, providing flexibility for various project requirements.

The 2XCR100next is designed to quickly, efficiently, and cost-effectively produce professional and forgery-resistant oversized CR100 identity cards.

Technical specifications:

  • Printing Technology: Dye-Sublimation / Thermal Printing
  • Interface: USB 1.1 (compatible with USB 2.0)
  • Ribbons:
    • Full-color YMCKO for 400 cards
    • Monochrome ribbons for 2,000 prints each, available in Black (K), White, Blue, Red, Green, Silver, and Gold
  • Printing Resolution: 300 dpi
  • Printing Speed:
    • Full color (YMCKO): up to 180 cards per hour
    • Monochrome: up to 1,400 cards per hour
  • Card Size: CR100 – 98.5 x 67 mm (2.63 x 3.88 in.)
  • Card Thickness: 0.25 mm to 1.0 mm (10–40 mil)
  • Card Feeder: 100 cards (0.76 mm / 30 mil)
  • Output Hopper: 50 cards (0.76 mm / 30 mil)
  • Drivers: Windows 7–11, Mac OS 10.5–10.8, Linux
  • Encoding Options: Contactless (RFID) encoder: Mifare
  • Additional Options: Ethernet interface, Mini-PC for cloud connection, Duplex (Flipturn) Unit
  • Dimensions (Printer only): 197.8 mm (W) x 354 mm (L) x 204 mm (H), 7.79 in. x 13.94 in. x 8.03 in. (without feeder and output hopper)
  • Dimensions (Printer boxed): 290 mm (W) x 500 mm (L) x 300 mm (H), 11.42 in. x 19.69 in. x 11.81 in.
  • Weight: Printer: 4.6 kg / 10.15 lb (without options); Printer boxed: 6.3 kg / 13.89 lb (without options)
  • Warranty: 2 years

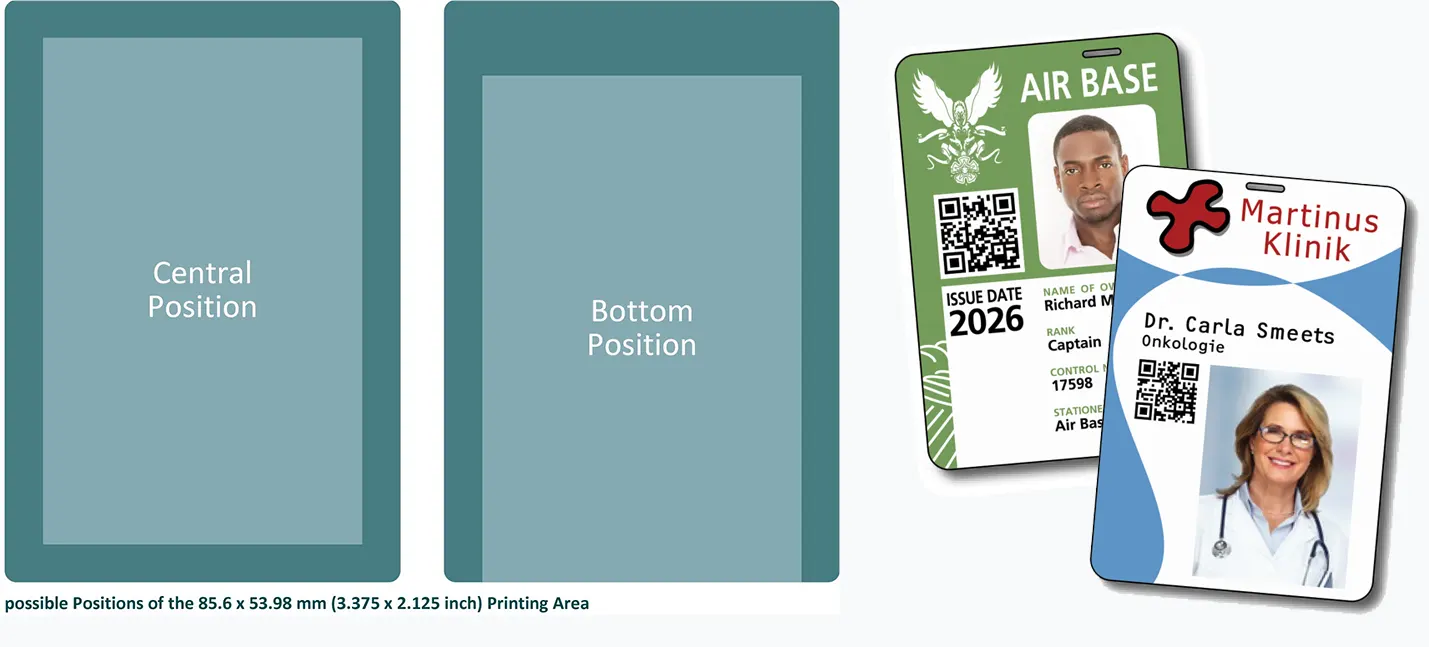

Printing areas:

Drivers

Windows driver -
Windows 11, 10, 8 & 7 (32/64-bit), Windows 2000, XP, Vista:

Download Driver Now

Mac Driver:


Download Mac Driver Now
Whitepaper: How to Choose an Oversized ID Card Printer

Whitepaper: How to Choose an Oversized ID Card Printer

From hosting a conference to inviting your clients to a golf outing, companies use events to get their brand front and foremost. Corporate events are a great tool to build unique relationships with your customers while making a lasting impression on them. In addition, have you discovered the benefits of tradeshows? Not only can you test new products at trade shows, but you get access to a large population of your ideal customers which results in a lower cost per sale.

What is the common denominator between all these different types of events? Your attendees, staff and sponsors will all need badges. And as the event planner, you will need an easy way to print these badges on demand. This white paper helps you determine the types of badges you need and the best way to produce them. We will look at customization, efficiency, and convenience when considering an oversized ID card printer for your next event.
