Zebra ZC10L ID Card Printer

Designed especially to meet Hospitality application needs, the Zebra ZC10L card printer is the only large-format, direct-to-card printer that can produce full, edge-to-edge color PVC cards in one printing process.  Print custom, photo-quality cards on demand.  Avoid the hassle of pre-ordering and inventorying partially pre-printed cards.  Reduce the waste of unusable, leftover cards.

The ZC10L is a 300 dpi modified photo printer, so it provides exceptional image quality—especially for background graphics and photos.  Users can pair Zebra’s CardStudio card design software with the ZC10L’s outstanding photo-quality, color printing to design and produce beautiful cards with rich graphics, crisp text, barcodes and images.

Customers can create visually compelling cards with high-quality designs, allowing for added revenue streams through sponsorship logo inclusion and advertising placements.  Capture guest photos at the point of entry and print customized, edge-to-edge cards on the spot.  Create enduring guest mementos, not simply event access tools.

The ZC10L prints PVC cards that are approximately 3.5 x 5.5" (88 mm x 140 mm).  This larger format helps customers increase security as the oversized passes and badges are easier to see and read at a distance, giving event staff the ability to quickly identify guests and determine access permission.

As a direct-to-card printer, the ZC10L is easier to relocate than an inkjet printer.  Users simply unplug the printer and move it.  There is no risk of leaking ink, electrical shock or fire.  And, with an all-metal construction, the ZL10L can endure the shocks, bangs and bumps that often occur during shipping.





PRINTING

• Direct to card — dye diffusion

• Full color or monochrome printing

• Single-sided printing

• Max print speed single-side YMCKO 200 cph

• Max print speed single-sided K mono 350-425 cph

• Photo-quality images

• Edge-to-edge printing

STANDARD FEATURES

• USB connectivity

• 400 card capacity feeder

• 100 card capacity output hopper

• Multi-status LED operator display

• 300 dpi print resolution

• 64 MB memory standard

• 2 year / 20,000 card warranty on printer

• Zebra CardStudio Classic card design and issuance software

• Microsoft® Windows® drivers

OPTIONS AND ACCESSORIES

Zebra OneCare Service program

10/1000 Ethernet connectivity External Print Server

SOFTWARE

Microsoft Windows Printer Drivers for: Windows 7, Windows 8, Windows 10,

Windows Server 2008, and Windows Server 2012

CardStudio Classic version 1.3 or later card design and issuance software — single user license key

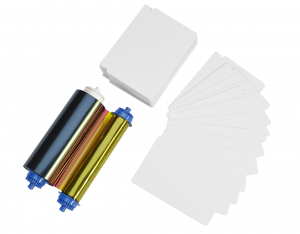

SUPPLIES

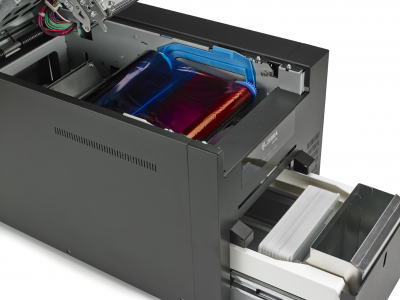

Intelligent technology uses RFID tags to authenticate and automate color ribbon and monochrome ribbon.

Ribbon YMCO 4-panel: 400 images/roll

Monochrome black: 2,000 images/roll

CARD SPECIFICATIONS

Card Thickness 17 mil

Card Size 5.5" x 3.46" (140 mm x 88 mm)

Card Material PVC

COMMUNICATIONS INTERFACES

USB 2.0

USB supports plug-and-play printer identification

10/100 Ethernet connectivity (External Print Server Option)

ELECTRICAL

Auto-switching AC power

90V~264V AC and 48 - 62 Hz

PHYSICAL CHARACTERISTICS

Height: 11.42” / 290 mm

Width: 10.94” / 278 mm

Depth: 19.09” / 485 mm

Weight (printer only): 41.9 lbs. / 19 kg
