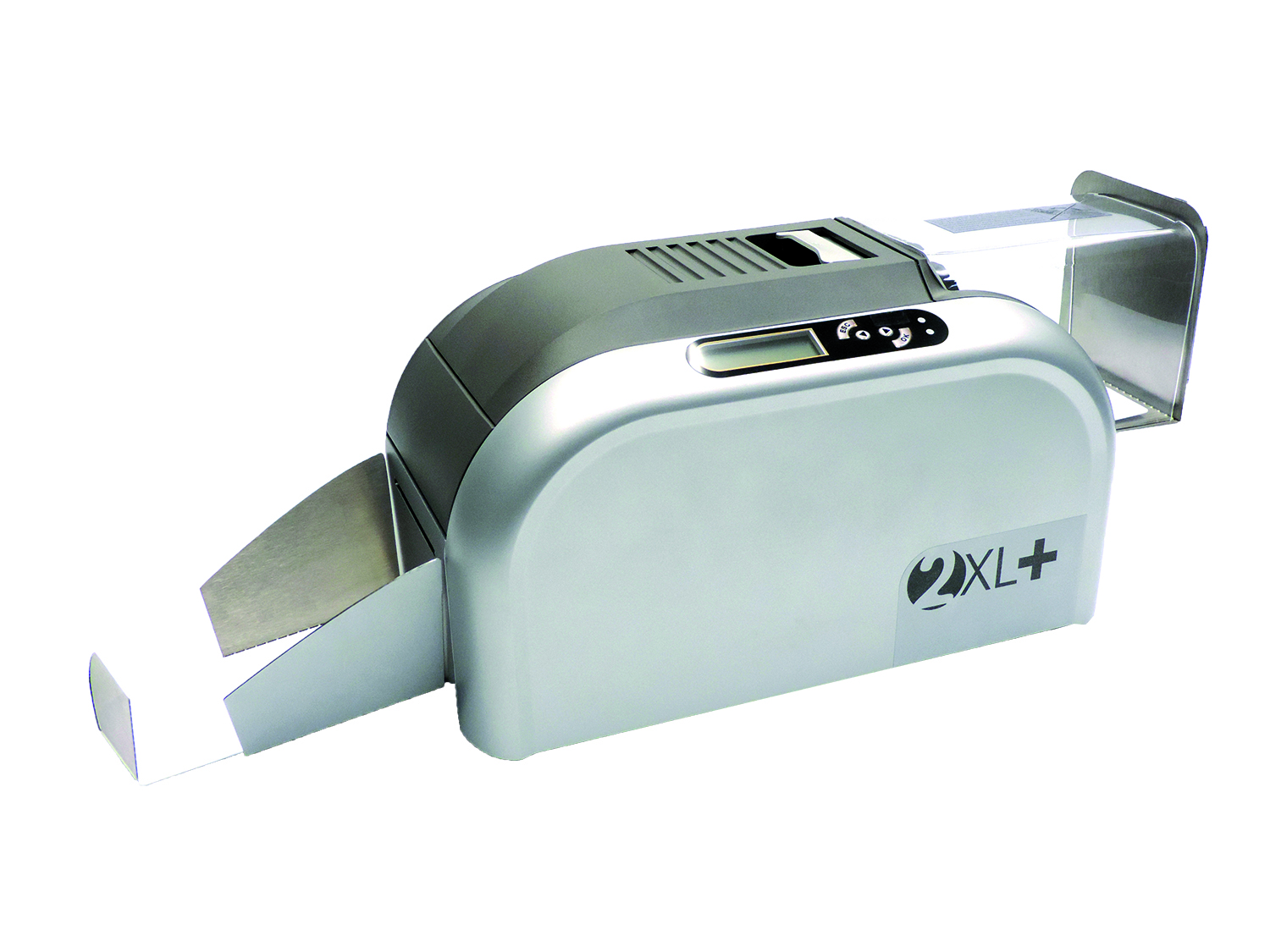

XXL 2.0 ID Card Printer

Concerts, awards ceremonies, tradeshows, and sports events require maximum security. The XXL 2.0 card printer for oversized badges is the professional solution to issue durable badges on demand. Robust and easy to use, the XXL 2.0 printer features a Plug & Play driver for Windows and Mac, standard USB, a convenient display and a 2-year warranty.

Enhance security with oversized photo ID badges. The XXL 2.0 ID card printer allows you to personalize oversized ID cards on demand. Oversized photo IDs let you visually scan a crowd and identify at a glance who has proper credentials and access rights. Easy to authenticate, durable and  secure, your ID badges will definitely make a lasting impression.

The new XXL 2.0 ID card printer can print up to 180 full cards per hour in color, and up to 1,400 cards per hour in monochrome.

The printer can personalize preprinted cards of 2 different sizes: 4.88 x 3.46 (124mm x 88mm) and 5.51 x 3.46 (140mm x 88mm). The maximum printable area is 86mm x 54mm. Cards can be flipped manually to issue dual-sided badges. Contactless encoding comes as an option to help you produce secure access badges on demand.

The XXL 2.0 ID card printer features a 2-year warranty.

Technical specifications:

  • Printing Technology: Dye Sublimation/Thermal Transfer
  • Interface: USB rev1.1 - compatible with USB 2.0
  • Ribbons:
    • YMCKO - 200 prints.
    • Monochrome black ribbon (K) - 2,000 prints.
    • White, blue, red, green, silver, and gold ribbons
  • Printing quality: 300 dpi
  • Speed:
    • Up to 180 cards per hour (YMCKO)
    • Up to 1,400 cards per hour (Monochrome)
  • Card formats:
    • 3.46 x 4.88
    • 3.46 x 5.51
  • Card thickness: From 0.25mm to 1.0mm (10mil~40mil)
  • Feeder: 100 cards (0.76mm / 30mil thickness)
  • Output hopper: 50 cards (0.76mm / 30mil thickness)
  • Operating Systems: Windows 10, Windows 8 (32/64-bit), Windows 7 (32/64-bit), Windows XP, Windows Vista, Mac OS 10.5-10.8
  • Dimensions (without feeder and hopper): 197.8mm W x 354mm L x 204 mm H
  • Encoding Options: Contactless (RFID), UHF, NFC
  • Further Options: Network Connection
  • Weight: 5.2 kg / 11.4 lbs. (options not included)
  • Warranty: 2 years

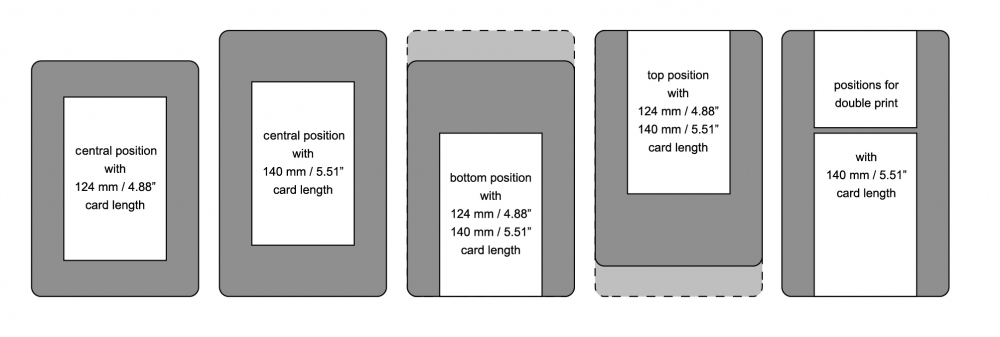

Printing areas:

The XXL in action:
