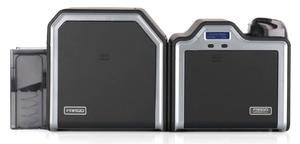

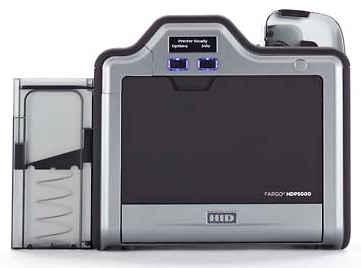

Fargo HDP5000 Single or Dual Sided ID Card Printer

Fargo HDP5000 Single or Dual Sided ID Card Printer

Vendor: Fargo View brochure
Low Price Guaranteed

Single Sided Encoding Options

# Name: Qty
89600 Fargo HDP5000 Single Sided No Encoding
89601 Fargo HDP5000 Single Sided ISO Magnetic Stripe Encoder
89602 Fargo HDP5000 Single Sided iCLASS, MIFARE/DESFire Contactless Encoder
89604 Fargo HDP5000 Single Sided ISO Magnetic Stripe Encoder, and iCLASS, MIFARE/DESFire Contactless Encoder
89603 Fargo HDP5000 Single Sided HID Prox Reader
89605 Fargo HDP5000 Single Sided ISO Magnetic Stripe Encoder, HID Prox Reader
89609 Fargo HDP5000 Single Sided HID Prox, iCLASS (SE), MIFARE/DESFire, and Seos Smart Card Encoder (OMNIKEY 5127 - USB ONLY)
89610 Fargo HDP5000 Single Sided ISO Magnetic Stripe Encoder, HID Prox, iCLASS (SE), MIFARE/DESFire, and Seos Smart Card Encoder (OMNIKEY 5127 - USB ONLY)

Single Sided (Single Sided Lamination) Encoding Options

# Name: Qty
89620 Fargo HDP5000 Single Sided (Single Sided Lamination) No Encoding
89621 Fargo HDP5000 Single Sided (Single Sided Lamination) ISO Magnetic Stripe Encoder
89622 Fargo HDP5000 Single Sided (Single Sided Lamination) iCLASS, MIFARE/DESFire Contactless Encoder
89624 Fargo HDP5000 Single Sided (Single Sided Lamination) ISO Magnetic Stripe Encoder, and iCLASS, MIFARE/DESFire Contactless Encoder
89623 Fargo HDP5000 Single Sided (Single Sided Lamination) HID Prox Reader
89625 Fargo HDP5000 Single Sided (Single Sided Lamination) ISO Magnetic Stripe Encoder, HID Prox Reader
89629 Fargo HDP5000 Single Sided (Single Sided Lamination) Base Model, HID Prox, iCLASS (SE), MIFARE/DESFire, and Seos Smart Card Encoder (OMNIKEY 5127 - USB ONLY)
89630 Fargo HDP5000 Single Sided (Single Sided Lamination) Base Model, ISO Magnetic Stripe Encoder, HID Prox, iCLASS (SE), MIFARE/DESFire, and Seos Smart Card Encoder (OMNIKEY 5127 - USB ONLY)

Dual Sided Encoding Options

# Name: Qty
89640 Fargo HDP5000 Dual Sided No Encoding
89641 Fargo HDP5000 Dual Sided ISO Magnetic Stripe Encoder
89648 Fargo HDP5000 Dual Sided iCLASS, MIFARE/DESFire, and Contact Smart Card Encoder
89650 Fargo HDP5000 Dual Sided ISO Magnetic Stripe Encoder, iCLASS, MIFARE/DESFire, and Contact Smart Card Encoder
89649 Fargo HDP5000 Dual Sided HID Prox and Contact Smart Card Encoder
89651 Fargo HDP5000 Dual Sided ISO Magnetic Stripe Encoder, HID Prox and Contact Smart Card Encoder
89652 Fargo HDP5000 Dual Sided HID Prox, iCLASS, MIFARE/DESFire, and Contact Smart Card Encoders
89653 Fargo HDP5000 Dual Sided ISO Magnetic Stripe Encoder, HID Prox, iCLASS, MIFARE/DESFire, and Contact Smart Card Encoders
89655 Fargo HDP5000 Dual Sided HID Prox, iCLASS (SE), MIFARE/DESFire, and Seos Smart Card Encoder (OMNIKEY 5127 - USB ONLY)
89657 Fargo HDP5000 Dual Sided ISO Magnetic Stripe Encoder, HID Prox, iCLASS (SE), MIFARE/DESFire, and Seos Smart Card Encoder (OMNIKEY 5127 - USB ONLY)

Dual Sided (Single Sided Lamination) Encoding Options

# Name: Qty
89660 Fargo HDP5000 Dual Sided (Single Sided Lamination) No Encoding
89661 Fargo HDP5000 Dual Sided (Single Sided Lamination) ISO Magnetic Stripe Encoder
89668 Fargo HDP5000 Dual Sided (Single Sided Lamination) iCLASS, MIFARE/DESFire, and Contact Smart Card Encoder
89670 Fargo HDP5000 Dual Sided (Single Sided Lamination) ISO Magnetic Stripe Encoder, iCLASS, MIFARE/DESFire, and Contact Smart Card Encoder
89669 Fargo HDP5000 Dual Sided (Single Sided Lamination) HID Prox and Contact Smart Card Encoder
89671 Fargo HDP5000 Dual Sided (Single Sided Lamination) ISO Magnetic Stripe Encoder, HID Prox and Contact Smart Card Encoder
89672 Fargo HDP5000 Dual Sided (Single Sided Lamination) HID Prox, iCLASS, MIFARE/DESFire, and Contact Smart Card Encoders
89673 Fargo HDP5000 Dual Sided (Single Sided Lamination) ISO Magnetic Stripe Encoder, HID Prox, iCLASS, MIFARE/DESFire, and Contact Smart Card Encoders
89675 Fargo HDP5000 Dual Sided (Single Sided Lamination) HID Prox, iCLASS (SE), MIFARE/DESFire, and Seos Smart Card Encoder (OMNIKEY 5127 - USB ONLY)
89676 Fargo HDP5000 Dual Sided (Single Sided Lamination) ISO Magnetic Stripe Encoder, HID Prox, iCLASS (SE), MIFARE/DESFire, and Seos Smart Card Encoder (OMNIKEY 5127 - USB ONLY)

Dual Sided (Dual Sided Lamination) Encoding Options

# Name: Qty
89680 Fargo HDP5000 Dual Sided (Dual Sided Lamination) No Encoding
89681 Fargo HDP5000 Dual Sided (Dual Sided Lamination) ISO Magnetic Stripe Encoder
89688 Fargo HDP5000 Dual Sided (Dual Sided Lamination) iCLASS, MIFARE/DESFire, and Contact Smart Card Encoder
89690 Fargo HDP5000 Dual Sided (Dual Sided Lamination) ISO Magnetic Stripe Encoder, iCLASS, MIFARE/DESFire, and Contact Smart Card Encoder
89689 Fargo HDP5000 Dual Sided (Dual Sided Lamination) HID Prox and Contact Smart Card Encoder
89691 Fargo HDP5000 Dual Sided (Dual Sided Lamination) HID Prox, iCLASS, MIFARE/DESFire, and Contact Smart Card Encoders
89693 Fargo HDP5000 Dual Sided (Dual Sided Lamination) ISO Magnetic Stripe Encoder, HID Prox, iCLASS, MIFARE/DESFire, and Contact Smart Card Encoders
89695 Fargo HDP5000 Dual Sided (Dual Sided Lamination) HID Prox, iCLASS (SE), MIFARE/DESFire, and Seos Smart Card Encoder (OMNIKEY 5127 - USB ONLY)
89696 Fargo HDP5000 Dual Sided (Dual Sided Lamination) ISO Magnetic Stripe Encoder, HID Prox, iCLASS (SE), MIFARE/DESFire, and Seos Smart Card Encoder (OMNIKEY 5127 - USB ONLY)

Description

The Fargo HDP5000 ID Card Printer is your answer to ID cards that feature high definition, vivid colors, and crisp images. If it’s important to project a professional image with high definition image quality that looks more like a sharp glossy photo, then the Fargo HDP5000 ID Card Printer is your best option.

The secret to its success is the Fargo HDP5000 ID Card Printer prints on film instead of directly on the card. This means that uneven surfaces won’t compromise your card’s image quality. The Fargo HDP5000 prints up to the edge of smart chip contacts and over the edge of the card.

This professional card printing solution is perfect for:

  • Corporate ID
  • National ID
  • Driver’s licenses
  • Government or military
  • State and local government
  • Transportation
  • Casinos
  • Health care
  • Universities

Exceptionally reliable printing

Since the HDP5000 prints on a film, its printhead never comes in contact with card surfaces or debris. This means the Fargo HDP5000 never gets damaged during the printing process. In fact, it comes with a lifetime warranty.

Simple and easy to use

The Fargo HEP5000 takes simple operation to the next level with only minimal training needed. Cards, ribbons, and overlamintes load in a snap, literally, by the cartridge-based system. Faster printing, combined with a dual card input hopper for multiple card types means you spend less time on the biggest production jobs.

Produce high-def cards anywhere

Thanks to the printer’s ethernet port and internal print server options, you can connect your HDP5000 to your network and print at multiple locations. Or if you’re a university or corporate campus, you can have an array of printer/encoders for high-volume production. Whatever your needs, the Fargo HDP5000 delivers. Fast.

Specifications

Print Method

HDP Dye-Sublimation / Resin Thermal Transfer

Resolution

300 dpi (11.8 dots/mm)

Colors

Up to 16.7 million / 256 shades per pixel

Print Speed (batch mode)

  • Up to 24 seconds per card / 150 cards per hour (YMC with transfer)
  • Up to 29 seconds per card / 124 cards per hour (YMCK with transfer)
  • Up to 40 seconds per card / 90 cards per hour (YMCKK with transfer)
  • Up to 35 seconds per card / 102 cards per hour (YMCK with transfer and dual-sided, simultaneous lamination)
  • Up to 48 seconds per card / 75 cards per hour (YMCKK with transfer and dual-sided, simultaneous lamination)

Accepted Standard Card Sizes

CR-80 (3.370in L x 2.125in W / 85.6 mm L x 54 mm W)

Accepted Card Thickness

.030in (30 mil) to .050in (50 mil) / .762 mm to 1.27 mm

Input Card Cartridge Capacity

100 cards (.030in / .762 mm)

Output Hopper Card Capacity:

200 cards (.030in / .762 mm)

Software Drivers

  • Windows 8/ 7/ Vista (32bit & 64 bit) / Server 2008 & 2003/ XP
  • Mac OS X v10.6 / v10.5
  • Linux

Print Area

Over-the-edge on CR-80 cards

Warranty:

  • Printer - Three years including one year of free printer loaner support (U.S. only); optional Extended Warranty Program (U.S. only)
  • Printhead - Lifetime; unlimited pass

Options

  • Dual card input hopper
  • Card lamination module — single-sided or dual-sided (simultaneous)
  • Smart card encoding (contact/contactless)
  • Dual-sided printing
  • Door and cartridge locks
  • Printer cleaning kit
  • Magnetic stripe encoding
  • 200-card input hopper
  • Secure Proprietary Consumables System
  • Custom Secure Holographic HDP Film and Overlaminate

Included Software

FARGO Workbench Diagnostic Utility with Color Assist spot-color matching
