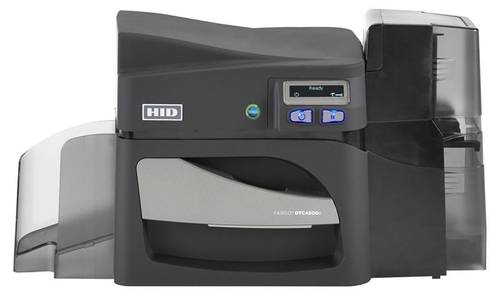

Fargo DTC4500e Single or Dual Sided ID Card Printer

Fargo DTC4500e Single or Dual Sided ID Card Printer

Vendor: fargo View brochure
Low Price Guaranteed

Single Sided (Dual-Input Card Hopper) Encoding, Locking Hoppers Options

# Name: Qty
55000 Fargo DTC4500e Single Sided (Dual-Input Card Hopper) No Encoding, No Locking Hoppers
55006 Fargo DTC4500e Single Sided (Dual-Input Card Hopper) HID Prox, iCLASS, MIFARE/DESFire, and Contact Smart Card Encoder (Omnikey Cardman 5121 and 5125), No Locking Hoppers
55008 Fargo DTC4500e Single Sided (Dual-Input Card Hopper) HID Prox, iCLASS (SE), MIFARE/DESFire, and Seos Smart Card Encoder (OMNIKEY 5127 - USB ONLY), No Locking Hoppers
55010 Fargo DTC4500e Single Sided (Dual-Input Card Hopper) ISO Magnetic Stripe Encoder, No Locking Hoppers
55020 Fargo DTC4500e Single Sided (Dual-Input Card Hopper) No Encoding, Locking Hoppers
55030 Fargo DTC4500e Single Sided (Dual-Input Card Hopper) ISO Magnetic Stripe Encoder, Locking Hoppers

Single Sided (Same-Side Hopper) Encoding, Locking Hoppers Options

# Name: Qty
55200 Fargo DTC4500e Single Sided (Same-Side Hopper) No Encoding, No Locking Hoppers
55206 Fargo DTC4500e Single Sided (Same-Side Hopper) HID Prox, iCLASS, MIFARE/DESFire, and Contact Smart Card Encoder (Omnikey Cardman 5121 and 5125), No Locking Hoppers
55208 Fargo DTC4500e Single Sided (Same-Side Hopper) HID Prox, iCLASS (SE), MIFARE/DESFire, and Seos Smart Card Encoder (OMNIKEY 5127 - USB ONLY), No Locking Hoppers
55210 Fargo DTC4500e Single Sided (Same-Side Hopper) ISO Magnetic Stripe Encoder, No Locking Hoppers
55220 Fargo DTC4500e Single Sided (Same-Side Hopper) No Encoding, Locking Hoppers
55230 Fargo DTC4500e Single Sided (Same-Side Hopper) ISO Magnetic Stripe Encoder, Locking Hoppers

Dual Sided (Dual-Input Card Hopper) Encoding, Locking Hoppers Options

# Name: Qty
55100 Fargo DTC4500e Dual Sided (Dual-Input Card Hopper) No Encoding, No Locking Hoppers
55106 Fargo DTC4500e Dual Sided (Dual-Input Card Hopper) HID Prox, iCLASS, MIFARE/DESFire, and Contact Smart Card Encoder (Omnikey Cardman 5121 and 5125), No Locking Hoppers
55108 Fargo DTC4500e Dual Sided (Dual-Input Card Hopper) HID Prox, iCLASS (SE), MIFARE/DESFire, and Seos Smart Card Encoder (OMNIKEY 5127 - USB ONLY), No Locking Hoppers
55110 Fargo DTC4500e Dual Sided (Dual-Input Card Hopper) ISO Magnetic Stripe Encoder, No Locking Hoppers
55120 Fargo DTC4500e Dual Sided (Dual-Input Card Hopper) No Encoding, Locking Hoppers
55130 Fargo DTC4500e Dual Sided (Dual-Input Card Hopper) ISO Magnetic Stripe Encoder, Locking Hoppers

Dual Sided (Same-Side Hopper) Encoding, Locking Hoppers Options

# Name: Qty
55300 Fargo DTC4500e Dual Sided (Same-Side Hopper) No Encoding, No Locking Hoppers
55306 Fargo DTC4500e Dual Sided (Same-Side Hopper) HID Prox, iCLASS, MIFARE/DESFire, and Contact Smart Card Encoder (Omnikey Cardman 5121 and 5125), No Locking Hoppers
55308 Fargo DTC4500e Dual Sided (Same-Side Hopper) HID Prox, iCLASS (SE), MIFARE/DESFire, and Seos Smart Card Encoder (OMNIKEY 5127 - USB ONLY), No Locking Hoppers
55310 Fargo DTC4500e Dual Sided (Same-Side Hopper) ISO Magnetic Stripe Encoder, No Locking Hoppers
55320 Fargo DTC4500e Dual Sided (Same-Side Hopper) No Encoding, Locking Hoppers
55330 Fargo DTC4500e Dual Sided (Same-Side Hopper) ISO Magnetic Stripe Encoder, Locking Hoppers

Dual Sided (Single-Side Lamination, Dual-Input Card Hopper) Encoding, Locking Hoppers Options

# Name: Qty
55400 Fargo DTC4500e Dual Sided (Single-Side Lamination, Dual-Input Card Hopper) No Encoding, No Locking Hoppers
55406 Fargo DTC4500e Dual Sided (Single-Side Lamination, Dual-Input Card Hopper) HID Prox, iCLASS, MIFARE/DESFire, and Contact Smart Card Encoder (Omnikey Cardman 5121 and 5125), No Locking Hoppers
55408 Fargo DTC4500e Dual Sided (Single-Side Lamination, Dual-Input Card Hopper) HID Prox, iCLASS (SE), MIFARE/DESFire, and Seos Smart Card Encoder (OMNIKEY 5127 - USB ONLY), No Locking Hoppers
55410 Fargo DTC4500e Dual Sided (Single-Side Lamination, Dual-Input Card Hopper) ISO Magnetic Stripe Encoder, No Locking Hoppers
55420 Fargo DTC4500e Dual Sided (Single-Side Lamination, Dual-Input Card Hopper) No Encoding, Locking Hoppers
55430 Fargo DTC4500e Dual Sided (Single-Side Lamination, Dual-Input Card Hopper) ISO Magnetic Stripe Encoder, Locking Hoppers

Dual Sided (Dual Sided Lamination, Dual-Input Card Hopper) Encoding, Locking Hoppers Options

# Name: Qty
55500 Fargo DTC4500e Dual Sided (Dual Sided Lamination, Dual-Input Card Hopper) No Encoding, No Locking Hoppers
55506 Fargo DTC4500e Dual Sided (Dual Sided Lamination, Dual-Input Card Hopper) Integrated HID Prox, iCLASS, MIFARE/DESFire, and Contact Smart Card Encoder (Omnikey Cardman 5121 and 5125), No Locking Hoppers
55508 Fargo DTC4500e Dual Sided (Dual Sided Lamination, Dual-Input Card Hopper) HID Prox, iCLASS (SE), MIFARE/DESFire, and Seos Smart Card Encoder (OMNIKEY 5127 - USB ONLY), No Locking Hoppers
55510 Fargo DTC4500e Dual Sided (Dual Sided Lamination, Dual-Input Card Hopper) ISO Magnetic Stripe Encoder, No Locking Hoppers
55520 Fargo DTC4500e Dual Sided (Dual Sided Lamination, Dual-Input Card Hopper) No Encoding, Locking Hoppers
55530 Fargo DTC4500e Dual Sided (Dual Sided Lamination, Dual-Input Card Hopper) ISO Magnetic Stripe Encoder, Locking Hoppers

Description

Built for situations requiring robust, high-volume printing every day, the Fargo DTC4500e ID Card Printer features a high-capacity ribbon and dual input card hoppers that give you maximum input capacity and multiple card management options.

You get maximum security with the optional single- or dual-sided simultaneous lamination that makes your cards extra durable and secure. You can also upgrade the Fargo DTC4500e ID Card Printer in the field with dual-sided printing and technology card encoding modules.

This professional services card printer is perfect for:

  • Corporate ID
  • National ID
  • Driver’s licenses
  • Government or military
  • State and local government
  • Health care
  • Universities
  • Events

Protect your cards from forgery

The Fargo DTC4500e ID Card Printer comes with additional security features that reduce or eliminate the risk that your printed ID cards will be replicated. From a password protected printer that only allows authorized personnel to print cards to data encryption, you can get highly customized cards that are hard to copy.

Optional upgrades for future needs

The Fargo DTC4500e ID Card Printer is both flexible and scalable with a unique modular design that makes it easy to upgrade when your needs change. You can choose dual-sided printing that gives you bar codes or digital signatures on the back and also holographic or fluorescent overlamintes that increase your cards’ security and eliminate the possibility of forgery.

Plenty of options for further functionality

The Fargo DTC4500e ID Card Printer is compatible with other Fargo products so that you can create the system you need for your security requirements. For example, the iCLASS SE embedded encoder allows you to create custom smart cards, and the Assure ID card personalization software and EasyLobby secure visitor management solutions give you access to additional features.

Specifications

Print Method

Dye-sublimation / resin thermal transfer

Resolution

300 dpi (11.8 dots/mm) continuous tone

Colors

Up to 16.7 million / 256 shades per pixel

Print Ribbon Options

Options include easy-to-use ribbon with disposable ribbon cartridge (EZ) and more economical and eco-friendly refill ribbon for cartridge (ECO)

Both EZ and ECO

  • Resin black (standard), 1000 prints

EZ only

  • Full-color with resin black and overlay panel, YMCKO, 250 prints
  • Full-color half-panel with resin black and overlay panel, YMCKO, 350 prints
  • Full-color with two resin black panels and overlay panel, YMCKOK, 200 prints
  • Full-color with fluorescing, resin black and overlay panel, YMCFKO, 200 prints
  • Full-color with fluorescing, two resin black panels and overlay panel, YMCFKOK, 175 prints
  • Resin black and overlay panel, KO, 500 prints
  • Dye-sublimation black and overlay panel, BO, 500 prints
  • Resin green, blue, red, white, silver, gold, 1000 prints
  • Resin silver and gold metallic, 500 prints

Rewrite technology - no ribbon is required

Print Speed

6 seconds per card (K)

8 seconds per card (KO)

16 seconds per card (YMCKO)

Accepted Standard Card Sizes

  • CR-80 (3.375? L x 2.125? W / 85.6 mm L x 54 mm W)
  • CR-79 adhesive back (3.313? L x 2.063? W / 84.1 mm L x 52.4 mm W)

Print Area

  • CR-80 edge-to-edge (3.36? L x 2.11? W / 85.3 mm L x 53.7 mm W)
  • CR-79 (3.3? L x 2.04? W / 83.8 mm L x 51.8 mm W)

Accepted Card Thickness

Print only: .009? - .040? / 9 mil - 40 mil / .229 mm - 1.016 mm

Print / lamination: .030? - .040? / 30 mil - 40 mil / .762 mm - 1.02 mm

Accepted Card Types

  • PVC or polyester cards with polished PVC finish
  • Monochrome resin required for 100% polyester cards
  • Optical memory cards with PVC finish
  • Rewrite

Input Hopper Card Capacity

Dual-input card hopper (200 cards)

Output Hopper Card Capacity

Up to 100 cards (.030? / .762 mm)

Reject Hopper Card Capacity

Up to 100 cards (.030? / .762 mm) - same-side input / output card hopper or lamination module required

Card Cleaning

Card cleaning roller integrated into ribbon cartridge; cleaning roller is automatically replaced with each ribbon change

Memory

32 MB RAM

Software Drivers

  • Windows XP / Windows Vista (32 bit & 64 bit) / Server 2003 & 2008 / Windows 7 / Windows 8 (32 bit & 64 bit)
  • MAC OS X 10.5/10.6/10.7/10.8
  • Linux

Interface

USB 2.0 and Ethernet with internal print server

Operating Temperature

65° to 80° F / 18° to 27° C

Humidity

20—80% non-condensing

Dimensions

Single-sided printer: 9.8? H x 18.1? W x 9.2? D / 249 mm H x 460 mm W x 234 mm D

Weight

Single-sided printer: 9lbs / 4.1 Kg;

Agency Listings

  • Safety: UL 60950-2, CSA C22.2 (60950-07), and CE
  • EMC: FCC Class A, CE (EN 55022 Class A, EN 55024), CCC, BSMI, KC

Environmental Features

All configurations without a lamination module are ENERGY STAR qualified printers

Supply Voltage

100-240Vac, 50-60Hz, 1.6 Amps max

Supply Frequency

50 Hz / 60 Hz

Warranty

Printer — three years

Printhead — three years, unlimited pass with UltraCard

Options

  • Single wire Ethernet and USB 2.0 interface for inline printing and encoding (note: single wire Ethernet encoding is only available for iCLASS, MIFARE, and contact smart card encoding)
  • Ethernet-enabled printer supports wireless accessory
  • Dual-sided printing module
  • Same-side input/output card hopper
  • Locking card input/output hopper
  • Smart card encoding modules (contact/contactless)
  • Magnetic stripe encoding module

Software

  • Swift ID embedded badging application
  • FARGO Workbench diagnostic utility with Color Assist spot-color matching

Display

User friendly, SmartScreen graphical display

Printer Security

Printer access password protected
