Fargo DTC4250e Single Sided ID Card System

Fargo DTC4250e Single Sided ID Card System

Vendor: fargo View brochure
Low Price Guaranteed

Printers Connectivity

# Name: Qty
USB - Included
Add Ethernet and Wifi + $499

Encoding

# Name: Qty
No Encoding
Add Magnetic Stripe Encoding + $499
Add HID Prox Encoding + $699
Add Contactless (iClass SE and Mifare/Desfire) + $699
Add Contactless and HID Prox Encoding (iClass SE and Mifare/Desfire) + $799
Add Contact Smart Card with Contactless and HID Prox Encoding (iClass SE and Mifare/Desfire) + $895

Hoppers

# Name: Qty
No Hopper
Add Dual Input Hopper + $600
Add Same Sided Input and Output hoppers + $200

Software

# Name: Qty
Asure ID Solo Software - Included
Upgrade to Asure ID Express + $350

Description

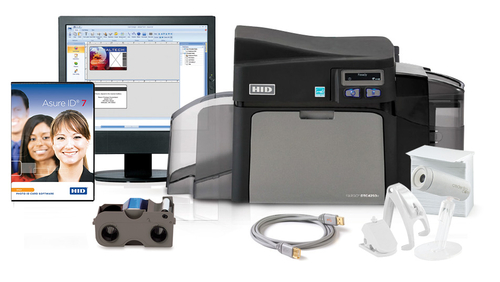

Whether you need a standalone system to print photo ID cards for employees or students, or you need to print payment cards, the Fargo DTC4250e Single Sided ID Card System comes with everything you need to print high-quality cards in minutes. To make it easy to get started, the Fargo DTC4250e Single Sided ID Card System comes with:

  • Fargo DTC 4250e Single-Sided ID Card Printer
  • Asure ID Express ID Card Printer Software
  • Fargo Full Color YMCKO Ribbon (250 Prints)
  • 1 pack of 3 cleaning rollers
  • 300 White PVC Cards
  • USB digital Web camera
  • 2-Year Asure ID Protect Plan

The Fargo DTC4250e Single Sided ID Card System is the perfect solution for:

  • Employee ID cards
  • Student ID cards
  • Access control badges
  • Loyalty cards
  • Gift cards
  • Membership cards
  • Payment cards

Protect your cards from forgery

The Fargo DTC4250e ID Card Printer comes with additional security features that reduce or eliminate the risk that your printed ID cards will be replicated. From a password protected printer that only allows authorized personnel to print cards to data encryption, you can get highly customized cards that are hard to copy.

Optional upgrades for future needs

The Fargo DTC4250e ID Card Printer is both flexible and scalable with a unique modular design that makes it easy to upgrade when your needs change. You can choose dual-sided printing that gives you bar codes or digital signatures on the back and also holographic or fluorescent overlamintes that increase your cards’ security and eliminate the possibility of forgery.

Plenty of options for further functionality

The Fargo DTC4250e ID Card Printer is compatible with other Fargo products so that you can create the system you need for your security requirements. For example, the iCLASS SE embedded encoder allows you to create custom smart cards, and the Assure ID card personalization software and EasyLobby secure visitor management solutions give you access to additional features.

Specifications

Print Method

Dye-sublimation / resin thermal transfer

Resolution

300 dpi (11.8 dots/mm) continuous tone

Colors

Up to 16.7 million / 256 shades per pixel

Print Ribbon Options

Options include easy-to-use ribbon with disposable ribbon cartridge (EZ) and more economical and eco-friendly refill ribbon for cartridge (ECO).

Both EZ and ECO

  • Resin black (standard), 1000 prints

EZ only

  • Full-color with resin black and overlay panel, YMCKO, 250 prints
  • Full-color half-panel with resin black and overlay panel, YMCKO, 350 prints
  • Full-color with two resin black panels and overlay panel, YMCKOK, 200 prints
  • Full-color with fluorescing, resin black and overlay panel, YMCFKO, 200 prints
  • Full-color with fluorescing, two resin black panels and overlay panel, YMCFKOK, 175 prints
  • Resin black and overlay panel, KO, 500 prints
  • Dye-sublimation black and overlay panel, BO, 500 prints
  • Resin green, blue, red, white, silver, gold, 1000 prints
  • Resin silver and gold metallic, 500 prints
  • Rewrite technology - no ribbon is required

Print Speed

  • 6 seconds per card (K)
  • 8 seconds per card (KO)
  • 16 seconds per card (YMCKO)

Accepted Standard Card Sizes

  • CR-80 (3.375˝ L x 2.125˝ W / 85.6 mm L x 54 mm W)
  • CR-79 adhesive back (3.313˝ L x 2.063˝ W / 84.1 mm L x 52.4 mm W)

Print Area

  • CR-80 edge-to-edge (3.36˝ L x 2.11˝ W / 85.3 mm L x 53.7 mm W)
  • CR-79 (3.3˝ L x 2.04˝ W / 83.8 mm L x 51.8 mm W)

Accepted Card Thickness

  • Print only: .009˝ - .040˝ / 9 mil - 40 mil / .229 mm - 1.016 mm
  • Print / lamination: .030˝ - .040˝ / 30 mil - 40 mil / .762 mm - 1.02 mm

Accepted Card Types

  • PVC or polyester cards with polished PVC finish
  • Monochrome resin required for 100% polyester cards
  • Optical memory cards with PVC finish
  • Rewrite

Input Hopper Card Capacity

Dual-input card hopper (200 cards)

Output Hopper Card Capacity

Up to 100 cards (.030˝ / .762 mm)

Reject Hopper Card Capacity

Up to 100 cards (.030˝ / .762 mm) - same-side input / output card hopper or lamination module required

Card Cleaning

Card cleaning roller integrated into ribbon cartridge; cleaning roller is automatically replaced with each ribbon change

Memory

32 MB RAM

Software Drivers

  • Windows XP / Windows Vista (32 bit & 64 bit) / Server 2003 & 2008 / Windows 7 / Windows 8 (32 bit & 64 bit)
  • MAC OS X 10.5/10.6/10.7/10.8
  • Linux

Interface

USB 2.0 and Ethernet with internal print server

Operating Temperature

65° to 80° F / 18° to 27° C

Humidity

20—80% non-condensing

Dimensions

Single-sided printer: 9.8˝ H x 18.1˝ W x 9.2˝ D / 249 mm H x 460 mm W x 234 mm D

Weight

Dual-sided printer: 11 lbs / 5 Kg;

Agency Listings

  • Safety: UL 60950-2, CSA C22.2 (60950-07), and CE
  • EMC: FCC Class A, CE (EN 55022 Class A, EN 55024), CCC, BSMI, KC

Environmental Features

All configurations without a lamination module are ENERGY STAR qualified printers

Supply Voltage

100-240Vac, 50-60Hz, 1.6 Amps max

Supply Frequency

50 Hz / 60 Hz

Warranty

Printer — three years

Printhead — three years, unlimited pass with UltraCard

Options

  • Single wire Ethernet and USB 2.0 interface for inline printing and encoding (note: single wire Ethernet encoding is only available for iCLASS, MIFARE, and contact smart card encoding)
  • Dual-sided printing module
  • Same-side input/output card hopper
  • Smart card encoding modules (contact/contactless)
  • Magnetic stripe encoding module

Software

  • Swift ID embedded badging application
  • FARGO Workbench diagnostic utility with Color Assist spot-color matching

Display

User friendly, SmartScreen graphical display

Printer Security

Printer access password protected
