Datacard SD360 Dual Sided ID Card Printer

Datacard SD360 Dual Sided ID Card Printer

Vendor: datacard View brochure
Low Price Guaranteed

Encoding Options

# Name: Qty
506339-001 Datacard SD360 Dual Sided Not Included
506339-002 Datacard SD360 Dual Sided ISO Magnetic Stripe
506339-017 Datacard SD360 Dual Sided ISO Magnetic Stripe, OpenCard
506339-023 Datacard SD360 Dual Sided Single Wire DUALi Smart Card Contact/Contactless Reader/Encoder
506339-019 Datacard SD360 Dual Sided Loosely Coupled Identive Smart Card Contact/Contactless Reader/Encoder
506339-024 Datacard SD360 Dual Sided ISO Magnetic Stripe, Single Wire DUALi Smart Card Contact/Contactless Reader/Encoder
506339-020 Datacard SD360 Dual Sided ISO Magnetic Stripe, Loosely Coupled Identive Smart Card Contact/Contactless Reader/Encoder

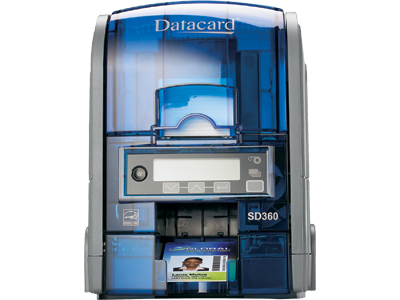

Bring even more value to your desktop with the Datacard® SD360™ dual-sided ID card printer (Item# 535504-001). Increase productivity and save work time by issuing secure, two-sided ID cards and badges with this best-in-class card printer. Ideal applications include small- to medium-sized businesses, schools, clubs and hospitals.

  • Save time with automatic two-sided card printing
  • Increase productivity with industry-leading print speeds
  • Produce vibrant and crisp images with TrueMatch™ technology
  • Greatly reduce the possibility of jamming with TruePick™ card handling


Issue secure credentials more easily with automatic two-sided printing.
Create customized cards and badges with automatic two-sided printing. The SD360 card printer produces outstanding, dual-sided ID cards that are both visually impressive and easy to produce.

Superior speed for higher productivity.
Reduce the hassle of jamming with Datacard’s exclusive TruePick™ card handling. Work time and efficiency can both be increased with the SD360 card printer, which produces clean credentials at industry-leading speeds.

New technology prints brighter, high-quality images.
Impress cardholders with the crisp, clean images and vibrant colors printed by the SD360 card printer. Datacard’s exclusive TrueMatch™ printing technology closely matches the colors on your card to the colors on your screen. Produce two-sided cards in full-color, up to 256 shades per color panel.

Intuitive operation simplifies card printing.
There’s very little learning curve with the SD360 card printer. Printer operations are easy to understand with the help of the intuitive soft-touch LCD panel. Load cards, replace supplies and access all the industry-leading features from one location on the compact SD360 printer, which includes a built-in 100-card input hopper and 25-card output hopper.

All the right connections for easy set-up
Standard, built-in Ethernet and USB ports, and the browser-based Printer Manager, help you integrate the SD360 printer into just about any application or typical IT environment.

Engineered for Earth-friendly performance.
Save energy and strengthen corporate environmental commitments with the Earth-friendly and ENERGY STAR® qualified SD360 card printer, which is built to consume less electricity than its predecessors. Biodegradable supply cores, recyclable materials and power-down button set new benchmarks for environmentally responsible card printing.


  • Magnetic stripe encoding
  • Smart card personalization
  • Extended 100-card output hopper
  • Extended 200-card input hopper
  • Kensington® security lock for printer

The Datacard® SD360™ dual-sided ID card printer (Item# 535504-001) comes with a 30-month standard warranty.


Print technology
  • Direct-to-card dye-sublimation/resin thermal transfer
Print capabilities
  • One- or two-sided, edge-to-edge printing
  • Full-color and monochrome printing capability
  • Alphanumeric text, logos and digitized signatures;1D/2D bar code images
  • Printer pooling/sharing (available soon)
Print resolution
  • 300 dots per inch, 256 shades per color panel
Print speed
  • Full-color: up to 200 cards per hour, one-sided(YMCKT*); up to 155 cards per hour, two-sided (YMCKT-K)
  • Monochrome: up to 830 cards per hour, one-sided (black HQ)
Card capacity
  • Automatic feed: 100-card input for 0.030 in. (0.76 mm)cards; 25-card output standard
  • Manual feed: 1-card input; 5-card output for 0.030 in.(0.76 mm) cards (SD260)
Physical dimensions
  • L 21.2 in. x W 6.9 in. x H 8.8 in. (53.9 cm x 17.5 cm x 22.4 cm)
  • 12.0 lbs (5.4 kg) (depending on options)
Operating system support for printer driver
  • Windows® 7 / Windows Vista® (32 and 64 bit)
  • Windows Server® 2008 (64 bit)
  • Windows XP SP3 / Windows Server 2003 R2 (32 bit)
  • Microsoft Windows Hardware Quality Labs (WHQL)certified
Environment/energy-saving features
  • ENERGY STAR® qualified printer
  • Biodegradable supply cores made with EcoPure® additive
  • Recyclable enclosure plastics (marked with recycle symbol per Resin Identification Code)
  • Recyclable packaging
Included with printer
  • Printer driver CD, Quick Install Guide and warranty
  • Free ID Works® Intro identification software
  • Cleaning pen
  • Cleaning roller spindle
  • USB cable
  • Power supply
  • Power cord (region-specific)
  • 30-month standard depot warranty
  • 30-month printhead warranty (no pass restrictions)
