Datacard SD260 Single Sided ID Card Printer

Datacard SD260 Single Sided ID Card Printer

Vendor: datacard View brochure
Low Price Guaranteed

Single Sided Boards, Hopper, Encoding Options

# Name: Qty
535500-002 Datacard SD260 Single Sided 100-Card Input Hopper
535500-001 Datacard SD260 Single Sided Manual Feed Input Hopper
535500-003 Datacard SD260 Single Sided Manual Feed Input Hopper, ISO Magnetic Stripe
535500-004 Datacard SD260 Single Sided 100-Card Input Hopper, ISO Magnetic Stripe
535500-005 Datacard SD260 Single Sided 100-Card Input Hopper, JIS Magnetic Stripe
535500-011 Datacard SD260 Single Sided 100-Card Input Hopper, Smart Card Enabled
535500-007 Datacard SD260 Single Sided 100-Card Input Hopper, Loosely Coupled Identive Smart Card Contact/Contactless Reader/Encoder
535500-009 Datacard SD260 Single Sided 100-Card Input Hopper, ISO Magnetic Stripe, Loosely Coupled Identive Smart Card Contact/Contactless Reader/Encoder
535500-008 Datacard SD260 Single Sided 100-Card Input Hopper, JIS Magnetic Stripe, Loosely Coupled Identive Smart Card Contact/Contactless Reader/Encoder
506335-002 Datacard SD260 Single Sided Printer with D3 boards, 100-Card Input Hopper, Smart Card Enabled
506335-020 Datacard SD260 Single Sided Printer with D3 boards, 100-Card Input Hopper, Single Wire DUALi Smart Card Contact/Contactless Reader/Encoder
506335-017 Datacard SD260 Single Sided Printer with D3 boards, 100-Card Input Hopper, Loosely Coupled Identive Smart Card Contact/Contactless Reader/Encoder
Add to Quote

Description

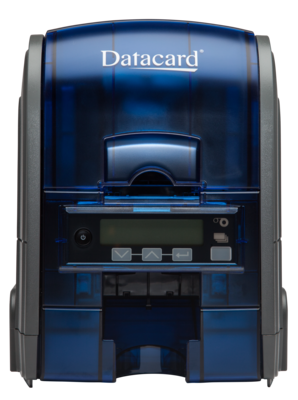

The Datacard® SD260 single-sided card printer (Item#: 535500-002) puts value right on your desktop. Save time and increase workday efficiency with this best-in-class card printer, ideal for small- to medium-sized businesses, schools, hospitals, fitness clubs and anyone who prints ID cards as part of their busy workday.

  • Superior speed and productivity. Print more cards in less time. SD Series printers are significantly faster than any other desktop card printers in their class. And TruePick™ anti-jam card handling accurately picks cards, standard and thin, with no adjustments.
  • Superb image quality for high-impact IDs. New TrueMatch™ printing technology – an industry exclusive – ensures the colors on your screen closely match the colors on your card. Batch after batch, you get consistently crisp, clean printing results from the first card to the last.
  • Easy operation that anyone can master. Intuitive icons guide you through the soft-touch control panel and LCD screen. Cards and supplies are easy to load, and the ergonomically designed ribbon cartridge includes a drop-in cleaning roller.
    • All the right connections for easy setup. Standard, built-in Ethernet and USB ports, and the browser-based Printer Manager, help you integrate SD Series printers into just about any application or IT environment.
    • Engineered for Earth-friendly performance. The SD Series printers earned their ENERGY STAR® qualifications by consuming far less electricity than their predecessors. With unique features such as biodegradable supply cores made with EcoPure® additive, recyclable packaging and power-down button, the SD Series printers set new benchmarks for environmentally responsible card printing.

    The Datacard® SD260 single-sided card printer (Item#: 535500-002) comes with a 30-month standard warranty.

Specifications

Print technology:

  • Direct-to-card dye-sublimation/resin thermal transfer

Print capabilities
  • SD260: One-sided, edge-to-edge printing; manual two-sided printing
  • SD360: One- or two-sided, edge-to-edge printing
  • Full-color and monochrome printing capability
  • Alphanumeric text, logos and digitized signatures; 1D/2D bar code images
  • Printer pooling/sharing

Print resolution - 300 dots per inch, 256 shades per color panel

Print speed
  • Full-color printing: up to 200 cards per hour, one-sided (YMCKT*);up to 155 cards per hour, two-sided (YMCKT-K*)
  • Monochrome: up to 830 cards per hour, one-sided (black HQ*)
Card capacity
  • Automatic feed: 100-card input for 0.030 in. (0.76 mm) cards; 25-card output standard
  • Manual feed: 1-card input; 5-card output for 0.030 in. (0.76 mm) cards (SD260)
Physical dimensions
  • SD260: L 15.4 in. x W 6.9 in. x H 8.8 in. (39.1 cm x 17.5 cm x 22.4 cm)
  • SD260L (longer body) with smart card: L 21.2 in. x W 6.9 in. x H 8.8 in. (53.9 cm x 17.5 cm x 22.4 cm)
  • SD360: L 21.2 in. x W 6.9 in. x H 8.8 in. (53.9 cm x 17.5 cm x 22.4 cm)
  • SD260: 8.1 lbs (3.7 kg) (depending on options)
  • SD260L (longer body) with smart card: 12.0 lbs (5.4 kg) (depending on options)
  • SD360: 12.0 lbs (5.4 kg) (depending on options)
Connectivity
  • Bidirectional USB 2.0 high speed; Ethernet 10 Base-T/100-Base-TX (with activity light)
Warranties
  • 30-month standard depot warranty; 30-month printhead warranty (no pass restrictions)
SD260 / SD360 Printer Options

Magnetic stripe encoding
  • Field upgradeable
  • ISO 7811 three-track option (high- and low-coercivity)
  • JIS Type II single-track option
  • Support for standard and custom data formats
Smart card personalization
Factory options (SD260L and SD360):
  • Contact/contactless all-in-one encoder (read/write) for MIFARE/DESFire, ISO7816, ISO14443, A/B
Field upgradeable options (SD260L and SD360):
  • Contact/contactless all-in-one encoder (read/write) for MIFARE/DESFire, ISO7816, ISO14443, A/B
  • iCLASS® by HID, read/write encoder or read-only
  • PC Prox by HID, read-only
  • Third-party OEM smart card option-ready (for contactless readers only – encoder not included)
End-user upgradeable options
  • Extended 100-card output hopper
  • Extended 200-card input hopper
  • Kensington® security lock for printer
*Ribbon type and number of panels; Y=Yellow, M=Magenta, C=Cyan, K=Black, T=Inline Topcoat, HQ=High Quality
