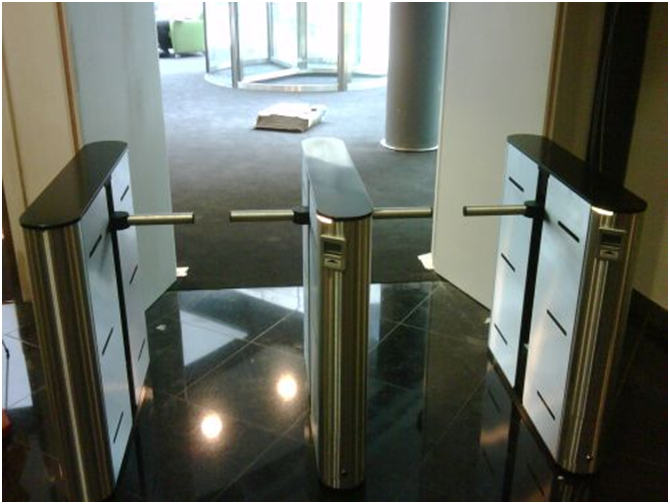

Barrier arm optical turnstiles
Fastlane Plus is an optical turnstile with fast-acting aluminum barrier arms to physically deter access. Elegant stainless steel enclosures provide a modern appearance and can be customized in a variety of finishes to complement lobby aesthetics.
Fastlane Plus offers:
- IP communication and control via a Web browser with Fastlane Connect
- Variable-tension barrier arms that break away in the direction of travel and return to the secure state automatically
- Superior tailgate detection and alarm accuracy from Fastlane optical technology
- Discreet pedestals (6.6” wide) used for all lane widths
- High reliability that maximizes return on investment
Fastlane Plus is available in a 400MA model that provides standard and ADA lane widths with two barrier arms. The 30MA model is a narrow-lane model with a single arm.
Fastlane Plus AS has a longer pedestal and off-center barrier arms that allow the unit
to operate in an open mode, whereby the arms are normally retracted and only
close if an unauthorized person enters the lane.
Barrier arm optical turnstile comparison
Features and options
| Fastlane Plus 30MA | Fastlane Plus 400MA | Fastlane Plus AS | |
| Barrier motion | Dropping | Dropping | Dropping |
| Pedestal footprint (W x L, in inches) | 6.6 x 38.3 | 6.6 x 38.3 | 6.6 x 50.2 |
| Lane width (in inches) | 21.7 — 23.6 | 26.0 — 36.0 | 23.6 — 37.8 |
| Barrier height (in feet) | 2.6 | 2.6 | 2.6 |
| Price | $$ | $$$$ | $$$$ |
| IP capability | No | Yes | No |
| UL 2593 listed | No | Yes | No |
| Barrier-lock mode | No | No | No |
| ADA/DDA | Yes | Yes | Yes |
| Throughput/minute | 30 | 60 | 60 |
