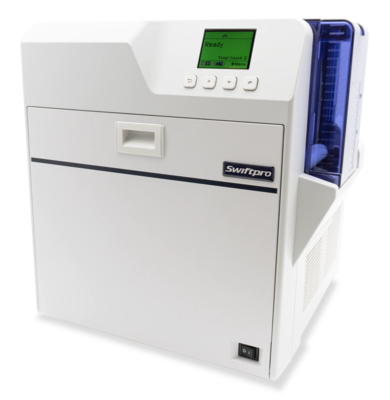

Swiftpro K65 600dpi Dual Sided Retransfer ID Card Printer

Swiftpro K65 600dpi Dual Sided Retransfer ID Card Printer

Vendor: nisca View brochure Security-Features.pdf
Low Price Guaranteed
Encoding:

Description

Overview

  • Dual-sided retransfer ID card printer for high-volume, high-security card issuance
  • 600 dpi x 600 dpi ultra-high resolution for crisp text, microtext, and vivid color images
  • Fast Mode: Up to 150 cards/hour; Fine Mode: Up to 120 cards/hour
  • Retransfer print technology with edge-to-edge coverage, including patch/overlay protection for durability
  • Supports magnetic, contact and contactless smart card encoding
  • Large 120-card input and output hoppers, with optional 250-card hopper

Security

  • Patented Security Erase function scrambles residual ribbon data to protect personal information
  • Dye-sublimation UV printing (256 gradations) for invisible security marks visible under UV light
  • IPSec (IPv6/IPv4) network encryption safeguards data during network printing
  • Electronic locking system for input hopper, ribbon, and film cartridges

Durability

  • Dual InTM retransfer film protection (INTM2)
  • Patch/Overlay security layer
  • Bend Remedy feature helps prevent card warping
  • Robust build quality; 36-month printer warranty, lifetime printhead warranty

Image Quality

  • 600 dpi resolution supports fine details and microtext printing
  • True edge-to-edge, photo-quality card output

Versatility

  • Supports a range of encoding options: magnetic stripe, contact and contactless smart cards (RFID)
  • Laminator connectivity available for additional security (single/dual side)
  • Compatible with a wide variety of card materials (PVC, PET, polycarbonate, etc.)
  • Large, multi-language color LCD panel for user-friendly operation
  • Mini PC storage bay (Max. 220mm x 208mm x 44mm)

Specifications

Printing System

  • Dye sublimation re-transfer
  • Printing density: 600dpi x 600dpi

Printing Overview

  • Double-sided printing
  • Full color, 256 gradations (dye-sublimation printing)
  • UV printing
  • Text, numeric, logos, 1D/2D barcode support

Card Personalization Speed

  • Fast Mode: ~25 seconds/card (150 cards/hour)
  • Fine Mode: ~30 seconds/card (120 cards/hour)
  • YMCKK Double sided printing: 54 sec/single card

Standard Features

  • Card hopper: 120 cards
  • Card output hopper: 120 cards
  • Optional card hopper: 250 cards
  • Card thickness: 10 – 40 mil (0.25mm ~ 1.00mm)
  • Card size: ISO 7810 Format, CR80, ID-1
  • Card Material: PVC, PC, PET, PET-G

Dimensions, Weight, & Operating Environment

  • Dimensions (WxHxD): 13.6" x 14.17" x 12.83" (346mm x 360mm x 326mm) (without card stacker)
  • Weight: Approx. 30.86 lb (13.7 kg)
  • Operating temperature: 59°F to 86°F (15°C to 30°C)
  • Humidity: 35% to 70% (YMCK ink, No condensation)

Operating Systems and Security Features

  • Microsoft® Windows® 10 32bit / 64bit
  • Microsoft® Windows® 11
  • Microsoft® Windows® Server 2016, 2019, and 2022
  • Interface USB2.0 (Hi-speed / Full Speed), USB HUB interface (Type A Connector)
  • Ethernet (100BASE-TX / 10BASE-T)
  • Electronic locking system for input hopper, color ribbon and INTM Film

Software Development Kit

  • K-Series optional SDK (contact your local sales office)

Encoding Options

  • Magnetic stripe encoder
  • Smart card contact/contactless (RFID)

Warranty

  • 36 months printer warranty, lifetime printhead warranty
