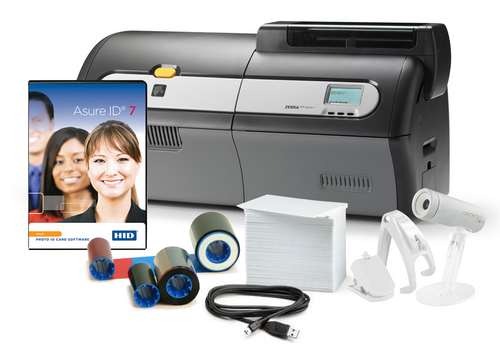

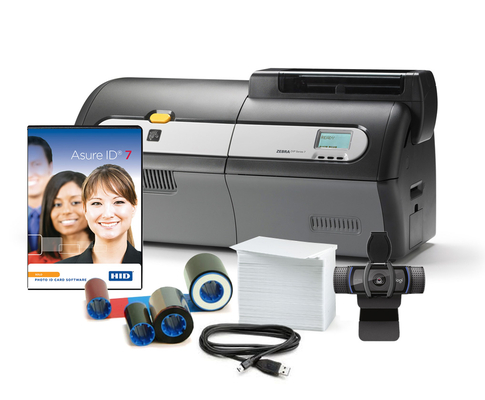

Zebra ZXP Series 7 Single Sided ID Card Printer with Media Starter Kit

Zebra ZXP Series 7 Single Sided ID Card Printer with Media Starter Kit

Vendor: zebra View brochure
Low Price Guaranteed

Description

If you have medium to high printing needs, the Zebra ZXP Series 7 Single-Sided ID Card Printer with Media Starter Kit is engineered to keep up with your load while still delivering photo-quality ID cards. Zebra has designed the ZXP Series 7 ID Card Printer to produce sharp, vivid cards with precise color control and still keep the total cost of the printer ownership low. And its innovative design means it automatically adjusts to the thickness of the card. Plus, ribbon loading is a breeze. The entire system comes with:

  • Zebra ZXP Series 7 Single-Sided ID Card Printer
  • YMCKKO/YMKCOK ribbon kit with cleaning rollers (250 images)
  • 200 PVC cards

Easy to Use Straight Out of the Box

The Zebra ZXP Series 7 ID Card Printer is designed to work straight out of the box to meet today’s demanding business needs. It prints near photo quality and color depth, while printing edge-to-edge on cards with the laminator ensuring your card’s security and longer lifespan.

Higher Productivity

Thanks to fast printing speed coupled with low maintenance, you’ll spend less time with your ID card printer and more time on your business matters. The Zebra ZXP Series 7 ID Card Printer is the ultimate multi-tacker and can print up to 3 jobs at the same time: encoding, printing, and laminating simultaneously. With the ribbon-loading and operation being surprisingly easy, taking care of your Zebra ZXP Series 7 ID Card Printer takes no time at all.

Adaptable to Future Needs

The Zebra ZXP Series 7 ID Card Printer is your flexible partner, meaning you can add functionality as your business needs change. Options include single or dual sided printing, wasteless single or dual sided lamination, ending, and a variety of connectivity options.

Ideal Applications

  • Employee and student ID cards
  • Employee access control cards
  • Gaming
  • Loyalty/membership/gift cards
  • Sports & entertainment
  • Government credentials
  • Secure access control
  • Financial services

Specifications

Standard Features

  • 300 dpi/11.8 dots per mm print resolution
  • USB 2.0 and Ethernet 10/100 connectivity
  • Microsoft Windows Certified drivers
  • 200-card capacity feeder (30 mil)
  • 15-card reject hopper (30 mil)
  • 100-card output hopper (30 mil)
  • Single-card feed capability
  • ix Series intelligent media technology
  • 21-character x 6-line LCD operator display with configurable soft keys
  • Kensington physical lock slot
  • Two-year unlimited warranty on printer and printhead

Optional Features

  • Single-sided laminator
  • FIPS 201 compliant dual-sided laminator
  • Lockable enclosures and card feeder
  • Extended product warranty programs
  • 802.11b/g wireless connectivity
  • 1D barcode scanner
  • Duo-Print upgrade kit

Printing and Laminating Specifications

  • Color dye sublimation or monochrome thermal transfer printing
  • Single- and dual-sided printing
  • Near photographic print quality
  • Edge-to-edge printing on standard CR-80 media
  • Simultaneous printing, encoding, and laminating capability
  • One-pass single- and dual-sided wasteless lamination
  • 1375 cards/hour monochrome single-sided or 555 cards/hour dual-sided printing
  • 300 cards/hour full-color YMCKO single-sided printing
  • 225 cards/hour full-color YMCKOK dual-sided printing
  • 270 cards/hour full-color YMCKO single-sided printing with lamination
  • 200 cards/hour full-color YMCKOKO dual-sided printing with lamination

Encoding Options and Specifications

  • Magnetic stripe encoder–AAMVA and ISO 7811 (new and pre-encoded, tracks 1, 2, and 3, high and low coercivity)
  • ISO 7816 Smart Card Contact Station for third party external contact encoders
  • Combined MIFARE ISO 14443 A & B (13.56MHz) contactless and ISO 7816 Contact Encoder with EMV level 1 certification, and PC/SC compliance (supported over USB and Ethernet)
  • EPCglobal Gen 2 UHF RFID encoder

Supplies Specifications

  • Zebra’s intelligent technology RFID tags authenticate and automate ix Series ribbons and i Series laminates
  • Card cleaning rollers included with each ribbon carton
  • Specially designed cleaning supplies simplify preventative maintenance

True Colours ix Series Ribbons

  • YMCKO: 250 or 750 images/roll
  • YMCUvK: 750 images/roll
  • YMCKOK: 250 or 750 images/roll
  • ½-panel YMC, full KO: 1250 images/roll
  • KdO and KrO: 2000 images/roll
  • WrKr: 2000 images/roll
  • Blue, red, gold, silver monochrome: 5000 images/roll
  • Black monochrome: 2500 or 5000 images/roll
  • White monochrome: 4000 images/roll
  • Scratch-off gray: 3250 images/roll
  • Other colors available on request

True Secure i Series Laminates

  • Linerless waste-free 1.0 mil top and bottom laminate: 750 images/roll
  • Laminate types: clear, magnetic stripe, smart card, and holographic wallpaper designs
  • Custom laminates with registered or wallpaper holographic images available on request

Card Specifications/Compatibility

  • Card thickness: 10—50 mil (0.25—1.27 mm)
  • Card thickness for lamination: 30 mil (0.76 mm)
  • Card size: CR-80, ISO 7810 format, Type ID-1
  • Card material: PVC and composite, ABS cards, PET, PET-G, PET-F, PETix, and Teslin composite
  • Technology cards: contact and contactless smart cards
  • Specialty cards: adhesive backed, signature panel, transparent cards with IR-blocker

Software

  • ZMotif SDK support and sample code
  • Microsoft Windows Certified printer drivers with Toolbox utility features: Windows XP (32 bit), Vista (32 and 64 bit), Server 2003 (32 bit), Windows 7 (32 and 64 bit), Server 2008 (32 and 64 bit), Windows 8 and Win 8 Pro (32 and 64 bit), Server 2012 (64 bit)
  • CardStudio card design and issuance software
  • Zebra Virtual PrintWare software support

Communications Interfaces

  • USB 2.0
  • USB supports plug-and-play printer identification
  • 10/100 Ethernet
  • 802.11b/g wireless option

Electrical Specifications

  • Auto-switching single-phase AC power
  • 90V—264V AC and 47—63Hz (50—60Hz nominal)
  • FCC Class A

Physical Characteristics

  • Height: 12/306 mm
  • Width (printer only): 27.5/699 mm
  • Width (printer with laminator): 38/964 mm
  • Depth: 10.9/277 mm
  • Weight (printer only): 26.9 lbs/12.2 kg
  • Weight (printer with laminator): 39.5 lbs/17.9 kg

Environmental

  • Operating temperature: 59˚ F/15˚ C to 95˚ F/35˚ C
  • Storage temperature: 23˚ F/-5˚ C to 158˚ F/70˚ C
  • Operating humidity: 20% to 80% inclusive, non-condensing
  • Storage humidity: 10% to 90% inclusive, non-condensing
  • Media should be stored away from direct sunlight, between +5˚ and +30˚ C, and between 30% to 50% relative humidity
