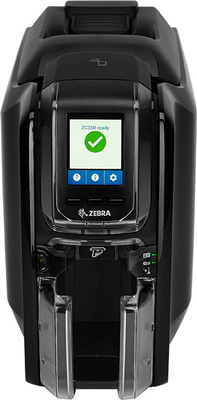

Zebra ZC350 Single or Dual Sided ID Card Printer

Zebra ZC350 Single or Dual Sided ID Card Printer

Vendor: Zebra
Item#: ZC35

Description

Card printing plays an important role in your business. You want a card printer that can print virtually any type of card with blazing speed, while minimizing the impact on your operational efficiency and workforce productivity — a card printer that’s flexible, secure, easy to set up, easy to use and easy to manage. You can have it all with the ZC350.

You get comprehensive card printing options. Print single or dual-sided cards in color or black and white, with specialty ribbons that offer special effects that will impress card recipients and make your cards hard to counterfeit. For example, add color-shifting graphics with a new pearlescent ribbon. Use 3D effects to make logos and text stand out with a new metallic ribbon. Add a watermark for simple elegance or additional counterfeit protection. Or add a highly durable protective layer to create cards that can last for years. Comprehensive encoding options allow you to easily create cards for any type of transaction — contact, contactless or magnetic stripe. And with fast printing, workers spend less time printing and more time on more crucial tasks — and customers spend less time waiting for cards to print.

You get elegant engineering for game changing simplicity. The ZC350 is plug and play, right out of the box — no configuration needed. The ingenious card feeder self-adjusts to card thickness. The new driver offers a graphical user interface that brings a new level of simplicity to managing the printing process and the look and feel of your printed cards. There is only one way the ribbon can be inserted into the printer for fool-proof ribbon changes — and with smart chips in the ribbons, you’re sure to always change ribbons before they are spent, avoiding needless printer downtime. Need to manually insert a card? The light pipe takes away any confusion, guiding users on where and how to insert the card. And with support for many diverse languages, the ZC350 is ready for deployment in any part of the world.

The ground-breaking ‘fits everywhere’ design is right at home anywhere in your business — from offices and back rooms to customer-facing areas. The slimmest profile and lowest clearance requirements allow the ZC350 to fit practically anywhere, providing the greatest deployment flexibility — it easily fits under a shelf and in other space constrained areas where other printers just can’t fit. Security features enable no-risk card printing in public-facing spaces, from a printer cover lock that prevents the theft of card stock and printed cards, government grade encryption to protect the most sensitive data and printer-to-host authentication to prevent unauthorized applications or mobile devices from printing cards.

And with Link-OS for Card inside, Zebra’s powerful printer operating system, you also get Print DNA, a family of printer software applications that puts the ZC350 in a class of its own by making it easier that ever to integrate card printing into your apps, design cards and support your ZC350 card printers.

The ZC350 Series — the card printer that delivers it all.



Specifications

STANDARD FEATURES
  • 300 dpi (11.8 dots/mm) print resolution
  • 2 GB flash memory
  • Image size: 1006 x 640 pixels
  • Auto calibration of ribbon
  • USB 2.0 and Ethernet 10/100 connectivity
  • 100 card capacity auto-adjusting input hopper (30 mil)
  • 100 card capacity output hopper (30 mil)
  • Manual card feeding capability with LED bezel
  • Graphical color LCD
  • 3 Tricolor printer status indicator lights
  • Kensington® secure lock slot
  • Print Touch NFC tag for online printer help and documentation access
  • Printer host authentication
  • Data encryption
  • Two-year unlimited warranty on printer and printhead
PRINTING SPECIFICATIONS
  • Dye-sublimation thermal transfer direct to card print method
  • Full-color or monochrome printing
  • Single and dual-sided printing
  • Edge-to-edge printing on standard CR-80 media
Printing throughput (cards per hour) based on batch printing with USB connectivity. Times may vary depending on the computer configuration.
  • 225 cards/hour single-sided YMCKO
  • 150 cards/hour dual-sided YMCKOK
  • 1,000 cards/hour single sided monochrome
  • 500 cards/hour dual sided monochrome
MEDIA SPECIFICATIONS
Supplies Specifications:
NOTE: The ZC350 printer is designed to work only with Zebra
genuine ribbons. Ribbons are included in a simple-to-load cartridge.
  • YMCKO* - 200
  • YMCKO* - 300
  • YMCKOK* - 200
  • ½ YMCKO* - 400
  • ½ YMCKOKO* - 250
  • YMCKLL* - 200
  • YMCPKO* - 200
  • SrDYMCKO* - 200
  • KrO* - 700
  • KdO* - 700
  • Holographic Overlay* - 500
  • Black Monochrome* - 2000
  • Black Monochrome - 1500
  • White Monochrome* - 1500
  • Red Monochrome - 1500
  • Blue Monochrome - 1500
  • Gold Monochrome - 1500
  • Silver Monochrome - 1500
Ribbon availability may vary by region.
  • *Zebra intelligent technology automatically detects and authenticates ribbon
  • Cleaning roller is included with each ribbon
  • Two available cleaning kit options: your choice of two (2) or five (5) isopropyl alcohol cleaning cards (1,000 images/card)

MEDIA SPECIFICATIONS (CONTINUED)
Card Compatibility:
NOTE: For optimum print quality and printer performance, use of Genuine Zebra supplies is recommended.
  • Card Thickness: 10-40 mil
  • Card Size: CR80 ISO 7810 ID-1 format, CR79
  • Card Material: PVC and PVC composite
  • Adhesive back and writable back cards
  • Spot color or monochrome printing only on < 20 mil thick cards and CR79 cards
OPERATING CHARACTERISTICS
Environmental
  • Operating Temperature: 59º F to 95º F/15º C to 35º C
  • Storage Temperature: 23º F to 158º F/-5º C to 70º C
  • Operating Humidity: 20% to 80% non-condensing
  • Storage Humidity: 20% to 90% non-condensing
  • Media Storage:
    • Temperature: 41º F to 77º F/5º C to 25º C
    • Humidity: 35% to 65% non-condensing
Electrical
  • Auto-switching single-phase AC power
  • Operating range: 90-132VAC and 190-264VAC RMS
  • Frequency range: 47-63 Hz
  • FCC Class A
PHYSICAL CHARACTERISTICS

SINGLE SIDED
Dimensions 10.2 in. H x 6.2 in. W x 15.1 in. D; 258 mm H x 157 mm W x 383 mm D
Weight 8.8 lbs (4.0kg)

COMMUNICATIONS AND INTERFACE CAPABILITIES
  • USB 2.0 — Standard
  • Built-in 10/100 Ethernet — Standard
  • 802.11ac with MFi — Optional
ENCODING OPTIONS AND SPECIFICATIONS
  • Magnetic stripe encoder – ISO 7811 (new and pre-encoded; tracks 1, 2, and 3; high and low coercivity; stripe down and stripe up with duals-sided printers) 1
  • Combined MIFARE® ISO 14443 A & B (13.56 MHz) contactless with 1 SAM Module Slot with support for reading Prox ISO 11784 and iCLASS ISO 15693 and ISO 7816 Contact Encoder with EMV level 1 certification, and PC/SC compliance1,2
  • ISO 7816 Smart Card Contact Station for third party external contact encoders1
  • Third party contactless encoder integration kit1
1. Field upgradeable options
2. Prox and iClass are standard in NA models and available as an upgrade in EMEA

PRINTER DRIVERS
  • Windows Server® 2003 (32 bit)
  • Windows Server 2008 (32 and 64 bit),
  • Windows 7 (32 bit and 64 bit)
  • Windows 8 and Win 8 Pro (32 bit and 64 bit
  • compatible)
  • Windows Server 2012 (64 bit)
  • Windows 10 (32 bit and 64 bit)
  • Windows drivers include:
    • Color coded printer status indicators for the operator
    • Black panel extraction and controls for specialty ribbon panels with image preview
    • Configuration utility to limit access by operators to change image quality and printer settings
    • Advanced printer configuration, security settings and diagnostics capabilities
Linux Ubuntu
Apple iOS 10.2

Please see www.zebra.com for an up-to-date listing of supported systems.

ADDITIONAL OPTIONAL FEATURES
  • Card flipper for dual-sided printing*
  • 10 card reject bin is standard with dual-sided printers*
  • Lockable enclosure*
*Field upgradeable options

PRINT DNA
Multiplatform Software Development Kit (SDK)
Windows C#/.Net and Java Printer Software Development Kit (SDK)
  • One SDK download supports Android, Java and Windows environments
  • Easily build card-printing apps with complete control over print functionality from Windows, Linux, Mac OS and Android environments
  • Enable card printing from Android mobile devices
  • Incorporate encryption and host authentication
  • Includes documentation and source code examples
CardStudio
Included with the printer, this simple-to-learn and feature-rich card design software that makes it easy to design loyalty cards, gift cards, ID cards and more.

Print Touch
With a single tap, you can use Android-based mobile devices to access how-to and troubleshooting information to help keep printers up, running and available.
About Print DNA. Print DNA propels your Zebra Link-OS for Card printers into a class of their own, providing Zebra-only software tools that make life easier for everyone who touches your printers, from printing to printer management and application development. Features are subject to availability. Specifications are subject to change without notice.
