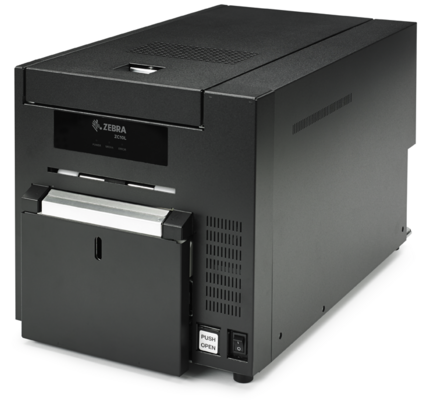

Designed especially to meet Hospitality application needs, Zebra’s ZC10L™ is the only large-format, direct-to-card printer that can print full, edge-to-edge color cards in one printing process. Eliminate extra work. With Zebra’s ZC10L large-format printer, you no longer have to pre-order and catalog partially preprinted guest badges and tickets. Print custom, photo-quality cards on demand. Avoid the hassle of pre-ordering and inventorying partially pre-printed cards. Reduce the waste of unusable, leftover cards.
Print Full, Edge-to-edge Color Cards in One Step
As the only large-format, direct-to-card printer that can print full, edge-to-edge color cards in one printing process, the ZC10L gives you freedom to customize, eliminates hassle and reduces waste. No need to bother with partially pre-printed cards. Customize the backside of cards with guest instructions or “fine-print” content and print it using Zebra’s monochrome black ribbon
Enjoy Custom Flexibility
Create visually compelling PVC cards with high quality designs using Zebra’s CardStudio design software. You can create full-size card designs without needing to measure card sections for template design or printing. With the ZC10L’s flexible, on-demand printing, you can even make card design changes right up to the time of your event. You can include sponsor logos, corporate advertising, and take guest photos at the point of entry to further personalize cards and create guest mementos.
Large Cards for Easy Reading
Zebra’s ZC10L printer produces large 3.5” x 5.5” passes and badges that are easy to see and read from a distance. It’s great for branding and increased event security, allowing event staff to identify guests and determine access permission at a distance.
Specifications
STANDARD FEATURES
300 dpi print resolution
64 MB memory standard
Card Size 5.5" x 3.46" (140 mm x 88 mm)
Ribbon YMCO 4-panel: 400 images/roll
Monochrome black: 2,000 images/roll
USB 2.0 connectivity
USB supports plug-and-play printer identification
400 card capacity feeder
100 card capacity output hopper
Multi-status LED operator display
Printer host authentication and data encryption
Print Touch NFC tag and Quick Help QR code for online printer help and documentation access
1-year unlimited warranty on printer and printhead
PRINTING SPECIFICATIONS
Direct to card — dye diffusion
Full-color or monochrome printing
Single-sided printing
Max print speed single-side YMCKO 200 cph
Max print speed single-sided K mono 350-425 cph
Photo-quality images
Edge-to-edge printing
Printing throughput (cards per hour) based on batch printing with USB connectivity. Times may vary depending on the computer configuration.
Card Compatibility:
NOTE: For optimum print quality and printer performance, use of Genuine Zebra supplies is recommended.
Card Thickness 24 mil
Card Size 5.5" x 3.46" (140 mm x 88 mm)
Card Material PVC
OPERATING CHARACTERISTICS Environmental
Operating Temperature: 50º F to 95º F/10º C to 35º C
Storage Temperature: -4º F to 131º F/-20º C to 55º C
Operating Humidity: 20% to 80% non-condensing
Storage Humidity: 10% to 95% non-condensing
Shipping Temperature -40º F to 140º F/-40º C to 60º C
Shipping Humidity: 10% to 95% inclusive, non-condensing
Electrical
Auto-switching AC power
90V~264V AC and 48 - 62 Hz
PHYSICAL CHARACTERISTICS Dimensions
11.42 in. H x 10.94 in. W x 19.09 in. D
290 mm H x 278 mm W x 485 mm D
Weight
Weight (printer only): 41.9 lbs. / 19 kg
COMMUNICATIONS AND INTERFACE CAPABILITIES
USB 2.0 — Standard
USB supports plug-and-play printer identification
10/100 Ethernet connectivity (External Print Server Option)
PRINTER DRIVERS
Microsoft Windows Printer Drivers for: Windows 7, Windows 8, Windows 10,
Windows Server 2008, and Windows Server 2012,
Card Studio Classic version 1.3 or later card design and issuance software — single user license key
Driver Features Auto sensing of ribbon type; Remaining card count on ribbon
Windows drivers include:
Color coded printer status indicators for the operator
Black panel extraction and controls for specialty ribbon panels with image preview
Configuration utility to limit access by operators to change image quality and printer settings
Advanced printer configuration, security settings and diagnostics capabilities
OPTIONS AND ACCESSORIES
Zebra OneCare Service program
10/1000 Ethernet connectivity External Print Server
