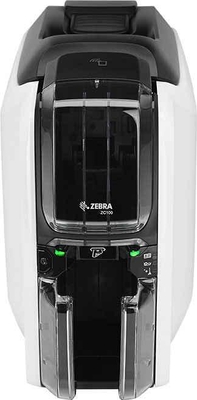

Zebra ZC100 Single Sided ID Card Printer

Zebra ZC100 Single Sided ID Card Printer

Vendor: zebra View brochure
Low Price Guaranteed

Interface, Encoding Options

# Name: Qty
ZC11-0000000US00 Zebra ZC100 USB Only, No Encoding
ZC11-000C000US00 Zebra ZC100 USB & Ethernet, No Encoding
ZC11-0M00000US00 Zebra ZC100 USB Only, ISO HiCo/LoCo Mag S/W Selectable
ZC11-0M0C000US00 Zebra ZC100 USB & Ethernet, ISO HiCo/LoCo Mag S/W Selectable

Description

Whether you’re printing employee badges to ensure security in your facility, or guest passes and membership cards for your customers, single-side card printing plays an important role in your business. You want a card printer that will minimize the impact on your operational efficiency and workforce productivity — a card printer that’s easy to set up, easy to use and easy to manage. You can have it all with the ZC100.

You get elegant engineering for game changing simplicity. The ZC100 is plug and play, right out of the box — no configuration needed. The ingenious card feeder self-adjusts to card thickness. The new driver offers a graphical user interface that brings a new level of simplicity to managing the printing process and the look and feel of your printed cards. There is only one way the ribbon can be inserted into the printer for fool-proof ribbon changes — and with smart chips in the ribbons, you’re sure to always change ribbons before they are spent, avoiding needless printer downtime. Need to manually insert a card? The light pipe takes away any confusion, guiding users on where and how to insert the card. And with support for many diverse languages, the ZC100 is ready for deployment in any part of the world.

The ground-breaking ‘fits everywhere’ design is right at home anywhere in your business — from offices and back rooms to customer-facing areas. The slimmest profile and lowest clearance requirements allow the ZC100 to fit practically anywhere, provides greater deployment flexibility. Security features enable no-risk card printing in public-facing spaces, from a printer cover lock that prevents the theft of card stock and printed cards, government grade encryption to protect the most sensitive data and printer-to-host authentication to prevent unauthorized applications or mobile devices from printing cards. The optional magnetic stripe encoder and integration kit for contactless encoders provide more card printing flexibility. Printing speed is up to 30% faster than the Zebra predecessor, the ZXP Series 1 card printer, so workers spend less time printing and more time on more crucial tasks — and customers spend less time waiting for cards to print. And Print DNA provides complementary printer software that makes it easier than ever to integrate card printing into your apps, design cards and support your ZC100 card printers.

The ZC100 — when only the best single-sided card printer will do.

Specifications

STANDARD FEATURES
  • 300 dpi (11.8 dots/mm) print resolution
  • 2 GB flash memory
  • Image size: 1006 x 640 pixels
  • Auto calibration of ribbon
  • USB 2.0 connectivity
  • 100 card capacity auto-adjusting input hopper (30 mil)
  • 100 card capacity output hopper (30 mil)
  • Manual card feeding capability with LED bezel
  • 3 Tricolor printer status indicator lights
  • Kensington® secure lock slot
  • Printer host authentication and data encryption
  • Print Touch NFC tag and Quick Help QR code for online printer help and documentation access
  • Two-year unlimited warranty on printer and printhead
PRINTING SPECIFICATIONS
  • Dye-sublimation thermal transfer direct to card print method
  • Full-color or monochrome printing
  • Single-sided printing
  • Edge-to-edge printing on standard CR-80 media
Printing throughput (cards per hour) based on batch printing with USB connectivity. Times may vary depending on the computer configuration.
Single-Sided
  • YMCKO: 150 cph
  • Monochrome: 700 cph
MEDIA SPECIFICATIONS
Supplies Specifications:
NOTE: The ZC100 printer is designed to work only with Zebra genuine ribbons. Ribbons are included in a simple-to-load cartridge.
  • YMCKO* - 200
  • ½ YMCKO* - 400
  • Black Monochrome* - 2000
  • Black Monochrome - 1500
  • White Monochrome* - 1500
  • Red Monochrome - 1500
  • Blue Monochrome - 1500
  • Gold Monochrome - 1500
  • Silver Monochrome - 1500
Ribbon availability may vary by region.
  • *Zebra intelligent technology automatically detects and authenticates ribbon
  • Cleaning roller is included with each ribbon
  • Two available cleaning kit options: your choice of two (2) or five (5) isopropyl alcohol cleaning cards (1,000 images/card)
Card Compatibility:
NOTE: For optimum print quality and printer performance, use of Genuine Zebra supplies is recommended.
  • Card Thickness: 10-40 mil
  • Card Size: CR80 ISO 7810 ID-1 format, CR79
  • Card Material: PVC and PVC composite
  • Adhesive back and writable back cards
  • Spot color or monochrome printing only on < 20 mil thick cards and CR79 cards
OPERATING CHARACTERISTICS
Environmental
  • Operating Temperature: 59º F to 95º F/15º C to 35º C
  • Storage Temperature: 23º F to 158º F/-5º C to 70º C
  • Operating Humidity: 20% to 80% non-condensing
  • Storage Humidity: 20% to 90% non-condensing
  • Media Storage:
    • Temperature: 41º F to 77º F/5º C to 25º C
    • Humidity: 35% to 65% non-condensing
Electrical
  • Auto-switching single-phase AC power
  • Operating range: 90-132VAC and 190-264VAC RMS
  • Frequency range: 47-63 Hz
  • FCC Class A
PHYSICAL CHARACTERISTICS
Dimensions
  • 10.2 in. H x 6.2 in. W x 15.1 in. D
  • 258 mm H x 157 mm W x 383 mm D
Weight
  • 8.6 lbs (3.9 kg)
COMMUNICATIONS AND INTERFACE CAPABILITIES
  • USB 2.0 — Standard
  • Built-in 10/100 Ethernet — Optional
  • 802.11ac with MFi — Optional
ENCODING OPTIONS AND SPECIFICATIONS
  • Magnetic stripe encoder — ISO 7811 (new and pre-encoded; tracks 1, 2, and 3; high and low coercivity; stripe down; 30 mil cards only)
  • Third party contactless encoder integration kit
PRINTER DRIVERS
  • Windows Server® 2003 (32 bit)
  • Windows Server 2008 (32 and 64 bit),
  • Windows 7 (32 bit and 64 bit)
  • Windows 8 and Win 8 Pro (32 bit and 64 bit
  • compatible)
  • Windows Server 2012 (64 bit)
  • Windows 10 (32 bit and 64 bit)
Windows drivers include:
  • Color coded printer status indicators for
  • the operator
  • Black panel extraction and controls for
  • specialty ribbon panels with image preview
  • Configuration utility to limit access by
  • operators to change image quality and
  • printer settings
  • Advanced printer configuration, security
  • settings and diagnostics capabilities
  • Linux Ubuntu
  • Apple iOS 10.2
ADDITIONAL OPTIONAL FEATURES
  • Lockable enclosure (field upgradeable option)
PRINT DNA
Multiplatform Software Development Kit (SDK)
Windows C#/.Net and Java Printer Software Development Kit (SDK)
  • One SDK download supports Android, Java and Windows environments
  • Easily build card-printing apps with complete control over print functionality from Windows, Linux, Mac OS and Android environments
  • Enable card printing from Android mobile devices
  • Incorporate encryption and host authentication
  • Includes documentation and source code examples
CardStudio
Included with the printer, this simple-to-learn and feature-rich card design software that makes it easy to design loyalty cards, gift cards, ID cards and more.
Print Touch
With a single tap, you can use Android-based mobile devices to access how-to and troubleshooting information to help keep printers up, running and available.
About Print DNA. Print DNA propels your Zebra Link-OS for Card printers into a class of their own, providing Zebra-only software tools that make life easier for everyone who touches your printers, from printing to printer management and application development.
