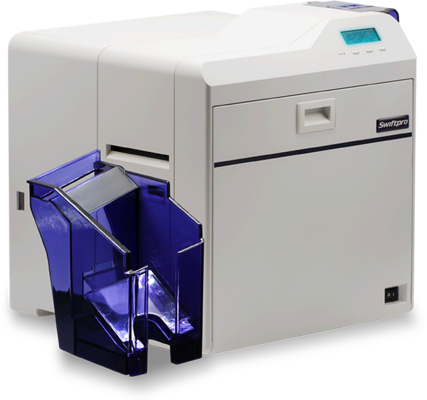

Swiftpro K30 Single Sided Retransfer ID Card Printer

Printing System

• Dye sublimation re-transfer
• Printing density 300dpi x 300dpi

Printing Overview

• Single sided printing
• Full color 256 gradations - Dye-sublimation printing
• Text, numeric, logo’s 1D, 2D bar code

Card Personalization Speed

• YMCK single printing: 27.5 sec single side
• YMCKK Double sided printing: 54 sec single side

Printer Overview

• Card hopper: 100 cards
• Card output hopper: 100 Cards
• Optional card hopper: 250 Cards
• Cards thickness: 0.25mm ~ 1.00mm, Size: 54.0mm * 85.6mm

Dimensions, Weight, & Operating Environment

• Dimensions: 343mm x 335mm x 322mm (WxHxD) (without card stacker)
• Mass approx.: Single side 13.5kg / Dual side 13.7kg
• Temperature: 15°C to 30°C Humidity: 35% to 70% (YMCK ink, No condensation)

Operating Systems and Security Features

• Microsoft® Windows®10 32bit/64bit
• Microsoft® Windows®8 (including 8.1) 32bit/64bit
• Microsoft® Windows®7 (SP1) 32bit/64bit
• Microsoft® Windows® Server 2012 64Bit
• Microsoft® Windows® Server 2008 R2 (SP1) 64Bit
• Interface USB2.0 (Hi-speed / Full Speed)
• Ethernet (100BASE-TX / 10BASE-T)
• Electronic locking system for input hopper, colour ribbon and INTM Film

Software Development Kit

• K-Series optional SDK (Contact your local sales office)

Encoding Options

• Smart card contact/contactless

Warranty

• 36 months printer warranty with lifetime on Printhead
