Enjoy up to 5 years of our ADVANCE EXCHANGE WARRANTY services for IDP’s SMART-81 series printers. That’s right—this is not a loaner program; it’s a straightforward warranty service designed for your convenience! Choose our SMART-81 with the assurance that IDP is here to support you long after your purchase.

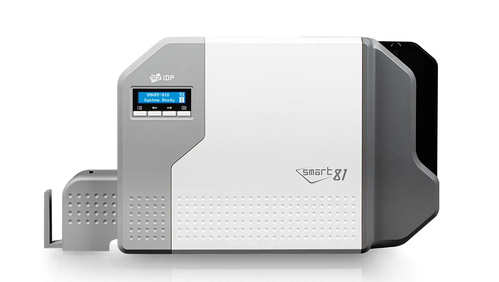

IDP Smart-81S Single Sided Retransfer ID Card Printer is a new generation retransfer card printer that offers the fastest production speed in the industry. IDP's innovative retransfer heating technology-Rapid Retransfer Printing technology or "RRP" provides the fastest "Ready to Print" metric in the industry.
Brilliant printing
IDP's RRP and FINE™ Imaging Technology optimizes print quality:
High resolution 300 x 300 up to 600 x 600 dpi output
Infinity over-the-edge full color printing
Professional series dye-sublimation printer ribbon ensures life-like replication
High production output
The SMART-81 Series offers high-speed printing:
Fastest "Ready to Print" in the industry / Fastest production speed
200 Card input hopper
Full-Color printing of over 144 cards per hour
Full-color printing and laminating of over TBA cards per hour (SMART-81L)
Monochrome printing and magnetic encoding of over TBA cards per hour
Rugged reliability
The SMART-81 Series metal frame offers distinct advantages:
Better print quality
Higher printer throughput
Long printer life
Easier maintenance
Reduced shipping damages
Multiple encoding options
All IDP's SMART Printers offer multiple card encoding options: magnetic stripe, contact and contactless smart cards. Additionally, IDP's OpenMag driver offers compatibility with legacy magnetic encode commands.
Advanced security - Bank card issuance
The SMART-81 Series offer advanced physical, electronic and physical security:
Security lamination (SMART-81L)
Bank card issuance security compliant
UV and SMARTMark printed security
Keyed consumables and Kensington® type lock options are available
Specifications
PRINTING
Print Type: Rapid Retransfer Technology (RRP)
Print Area: Infinity Over-the-edge color and monochrome printing
Resolution: FINE™ Imaging Technology - 300 or 600 dpi printing
CARD
Card Feeding: Automatic
Card Size: ISO CR80
Card Thickness: 0.76mm (30mil) ~ 1.2mm (47mil)
Card Type: PVC, PC, PET, Composite PVC
PRINT SPEED
Monochrome: TBA cards/hour
Color: 120 cards/hour
Color simplex / laminate speed: TBA cards/hour
CAPACITY
Input Hopper: 200 Cards
Output Hopper: 100 Cards
Error card bin: 25 Cards
ENCODING OPTIONS
Magnetic: ISO 7811 (Track I, II, III Read/ Write, HiCo/ LoCo), JIS II
Contact: ISO 7816 (ID-1)
Contactless: MIFARE, ISO 14443 (Type A/ B), ISO 15693, DESFIRE, iCLASS
SYSTEM
Display and Control Panel: 2 Line Graphic LCD Indicator / 4 Buttons
Supported Platforms: Microsoft Windows 7/ 8 /10 /11, Mac OS, Linux
Communication: USB, Ethernet
Power Supply: 100-240V~50
Power Consumption: 60Hz 2.5A
Temperature/Humidity: 15~35°C 35~70%
DIMENSIONS
Millimeter (WxLxH): 460 x 224 x 310
Inch (WxLxH): 18.1 x 8.8 x 12.2
WEIGHT
Kg/lbs: 11.4 / 25.13
WARRANTY
3-year advanced exchange warranty / Lifetime print head
