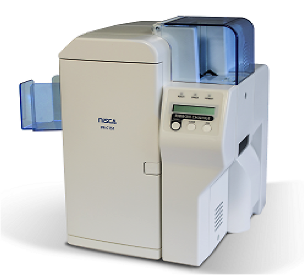

NiSCA PR-C151 Dual Sided ID Card Printer

NiSCA PR-C151 Dual Sided ID Card Printer

Vendor: Nisca View brochure
Low Price Guaranteed

Description

Mid Level, Dual-Sided Printer

The PR-C151 offers a small foot-print, 24-bit color, 256-Grayscale, security lamination, encoding options and prints at the astounding speed of over 144 cards/hour! The PR-C151 has the same NiSCA quality, manufactured in their ISO certified production facility.

The printer offers brilliant 24-bit images printed on CR80 cards with thicknesses ranging from 20 mil – 50 mil (.25mm-1.27mm) (10 mil Special Order). The PR-C151 is available with options for MagStripe encoding and security lamination with the addition of the PR-L151 laminator.

Specifications

300dpi Dual-Sided Printer - Edge-to-Edge

Print Method: Dye Sublimation Direct Print
Resolution: 300 dpi
Input: RGB 256 level
Output: CMY 256 level
Printing Area: Edge-to-Edge

Speed

Single Side YMCK: More than 2.4sec full color (144 cards/hr)
Double-Sided YMCK: More than 5.6sec full color (60 cards/hr)

Feeder Capacity: 100 cards (if card thickness is 0.76mm)
Card Exit Capacity: 100 cards (if card thickness is 0.76mm)
Card thickness: 20 mil – 50 mil (.25mm-1.27mm) 10 mil Special Order
Card Size: CR80 (85.6cm x 54cm)
Card material: PVC, PVC Composite
Display: LCD Display Panel (with Backlight), LED, Operation Button
Dimensions: 16.57(H) x 10.66(W) x 13.03(D) inches (421(H) x 271(W) x 331(D) mm)
Weight: Less than 26.61 lbs. (13kg)
Power Source: 90-125VAC 220-240VAC 50/60Hz
Power Consumption: Less than 120 W
Operating Temperature: 15 to 35°C - 20 to 80% humidity

I/F: USB, Ethernet
Drivers: XP, Vista, Win 8 (32/64 bits), Win8.1
Ribbon Capacity: 250 images / roll (YMCKO ribbon)
Ink Ribbon: YMCKO, K
Agency Listing: UL/CSA/CE/FCC
MTBF: 100,000 prints
Memory Size: 32MB

Options

Encoder: Mag Encoder
Contactless Encoder: (Mifare, Legic, HD Prox, iCLASS)
Laminator: NiSCA Dedicated Laminator

Warranty:

  • 5 Year Warranty
  • 5 Year HOTSWAP

Features:

  • Optional In-line R/W SmartCards
  • 32MB Memory
  • Self aligning print head module
  • Dual-sided printing
  • Dual-sided lamination w/ optional Heat Roller
  • Magnetic Stripe 3-Track encoding w/ optional encoder PR5361
  • Password authentication
  • Card standards: PVC, CR-80 & 79, 20 to 50mil thickness
