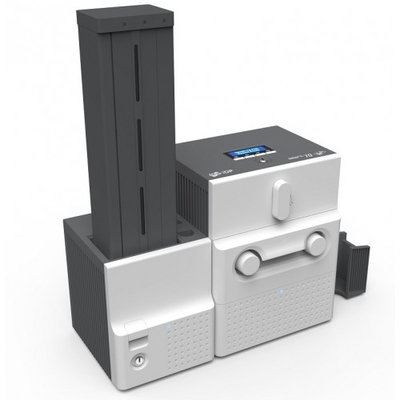

IDP Smart-70 Single Sided ID Card Printer

IDP Smart-70 Single Sided ID Card Printer

Vendor: IDP Item#: 651159-SL View brochure

SMART-70 Series the large capacity card printer from IDP is ideally suited to users who have large capacity needs, or for end-users who would like to secure their credential media in the securely locked printer. The SMART-70 Series offers a unique modular design that is easily upgraded by the end-user.

Configurations vary from single sided only printing to a fully configured system with dual sided printing, lamination and 500 cards output hopper.

The easily upgradeable: the printer offers a simple no-tool upgrade strategy that any dealer or IT technican would be able to manage in minutes. Saving maintenance time for replacing ribbon and laminating patch : 500 card ribbon and laminating patch are provided to match the capacity of the input hopper.

Each station (printer, encoding station, laminator, flipper, hopper) connects with an alignment plate. Each station has its own power supply and communication cables are provided to connect each station and synchronize their operation.

Printing

  • Print Type: Direct Dye-Sublimation
  • Print Area: Edge to Edge
  • Resolution: 300dpi

Card

  • Card Feeding: Automatic
  • Card Size: ISO CR80 (54mm x 86mm / 2.12” x 3.38”)
  • Card Thickness: 0.38mm (15mil), 1.2mm (47mil)
  • Card Type: PVC, Composite PVC, PET

Print Speed

  • Monochrome: 3.6 sec./card (1,000 cards/hour)
  • YMCKO: 18 sec./card (200 cards/hour), Max. 16 sec./card (225 cards/hour)
  • YMCKOK: 24 sec./card (150 cards/hour), Max. 22 sec./card (164 cards/hour)

Capacity

  • Input Hopper: 500 cards
  • Output Hopper: Stacker : 100 cards / *Optional Output Hopper : 500 cards

System

  • Memory: 64MB RAM
  • Interface: 2 Line LCD / 4 Buttons / 1 LED Indicator
  • Supported Platforms: Microsoft Windows 2000/ 2003/ XP/ Vista/ 7/ 8, Mac OS, Linux
  • Communication: USB, Ethernet
  • Power Supply: Free voltage (AC 100/ 220V, 50~60Hz)
  • Power Consumption: 24V, 2A
  • Temperature/Humidity: 15~35&grad;C / 35~70%

Security

  • Physical Lock: Ribbon
  • S/W: PC authentication, Password authentication
  • Station Itself: Kensington Lock

Dimensions

  • Millimeter: 240 (W) x 214 (L) x 305 (H)
  • Inch: 9.5 (W) x 8.4 (L) x 12 (H)

Weight

  • Approx. 6.3 kg/13.9 lbs
