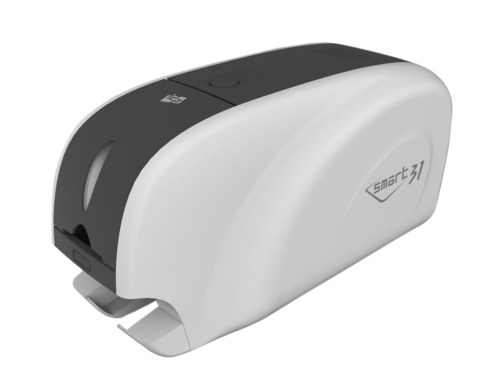

IDP Smart-31 Single or Dual Sided ID Card Printer

IDP Smart-31 Single or Dual Sided ID Card Printer

Vendor: IDP Item#: 651527 View brochure

SMART-31 Series value class ID card printer for everyone which is a perfect solution for printing ID cards at a low budget.

SMART-31S (single-sided), SMART-31D (dual-sided) and SMART-31R (rewritable) printer models are available.

SMART-31 Rewritable printer is an ideal solution for printing temporary information on ID cards

Printer Features

  • 300, 600 & 1200dpi with Edge-to-Edge Printing
  • LED Buttons for Front Operation
  • Low Cost Security with UV Printing
  • Installable Encoders: MS, Contact & Contactless
  • Upgradable Modules: Ethernet

PRINTING

  • Print Type: Dye-Sublimation
  • Print Area: Edge to Edge
  • 300dpi (Color & Mono), 600 & 1200dpi (Mono only), 300dpi (Retransfer)
  • Single or Dual Sided Printing
  • Retransfer option is available for single-sided printer

CARD

  • Card Feeding: Automatic
  • Card Size: ISO CR80 (54mm x 86mm/2.12” x 3.38”)
  • Card Thickness: 0.38mm (15mil), 0.76mm (30mil)
  • Card Type: PVC, PET, Composite PVC (Rewritable Thermochromic Material for Rewritable Printer)

PRINT SPEED

  • Monochrome: 5 sec./card (720 cards/hour); rewriting: 12 sec./card (300 cards/hour)
  • YMCKO: Max. 23 sec./card (156 cards/hour)
  • YMCKOK: Max. 29 sec./card (124 cards/hour)

CAPACITY

  • Input Hopper: 80 cards
  • Output Hopper: 25 cards

SYSTEM

  • Memory: 64MB RAM
  • Control Panel: 1 LED Button
  • Supported Platforms: Microsoft Windows 2000/2003/XP/ Vista/7/8/10, Mac OS, Linux
  • Communication: USB, Ethernet (Option)
  • Power Supply: Free Voltage (AC100/200V, 50~60Hz)
  • Power Consumption: 48
  • Temperature/Humidity: 15~35°C/35~70%

DIMENSIONS

  • Millimeter (WxLxH): 172 x 377 x 190
  • Inch (WxLxH): 6.8 x 14.8 x 7.5

WEIGHT

  • Single-sided: 3.4 kg / 7.5 lbs
  • Dual-sided: Approx. 4.2 kg / 9.5 lbs

ENCODING OPTIONS

  • Magnetic: ISO 7811(TrackI, II, III Read/Write, HiCo/LoCo), JISII
  • Contact: ISO 7816 (ID-1)
  • Contactless: MIFARE, ISO 14443 (Type A/B), ISO 15693 DESFIRE, iCLASS
