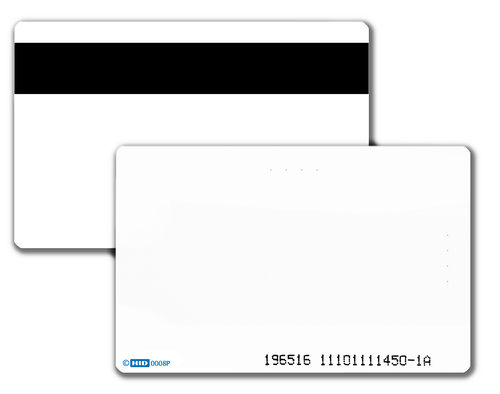

The HID 1336 DuoProx II Cards provide proximity, magnetic stripe and photo identification technologies on a single access control proximity card. The HID 1336 DuoProx II Cardswith magnetic stripe are ISO 7810 compliant, with a nominal thickness of .030". They feature a graphics quality surface optimized for photo ID printing.
The proximity card with magnetic stripe is available in standard PVC construction. The HID 1336 DuoProx II Cardswith magnetic stripe can be produced with visual security and anti-counterfeiting features such as holograms, ultra-violet fluorescent inks, micro-printing, or a custom logo to quickly and easily identify genuine cards.
The HID 1336 DuoProx II Cardsoffer consistent read range and are not impacted by body shielding or any variable environmental conditions, even when close to keys and coins. The HID 1336 DuoProx II Cardsare built to last and are resistant to cracking and breaking.
Combine proximity and magnetic stripe technology, and offers photo identification capability on a single proximity card.
Universal compatibility with HID prox readers
Graphics quality surface for use with direct-to-card printers
Same size and thickness as a standard credit card
Vertical or horizontal slot punch capability
Base Part Number: 1336
Typical Maximum Read Range:
ProxPoint® Plus reader-up to 2.5” (6.35 cm)
MiniProx® reader-up to 5” (12.7 cm)
ThinLine II® reader-up to 5” (12.7 cm)
ProxPro® reader-up to 7” (17.8 cm)
ProxPro® II reader-up to 8” (20 cm)
Prox80™ Card reader-up to 5” (12.7 cm)
MaxiProx® reader-up to 20” (50.8 cm)
EntryProx™ reader-up to 2.5” (6.35 cm)
pcProx™ Desktop reader-up to 2.5” (6.35 cm)
2.125” x 3.370” x 0.030” ± 0.003” nominal
(5.4 x 8.6 x 0.076 ± 0.0076 cm)
Thin, flexible polyvinyl chloride (PVC) laminate with an
ABA standard, high coercivity magnetic stripe rated
-50° to 160° F (-45° to 70° C)
External card numbering (inkjet or laser engraving)
Slot punch (horizontal or vertical)
Custom artwork (text or graphics)
A variety of magnetic stripe type
0.24 oz. (6.8 g)
Ready to be encoded by the customer. (See card construction.)
