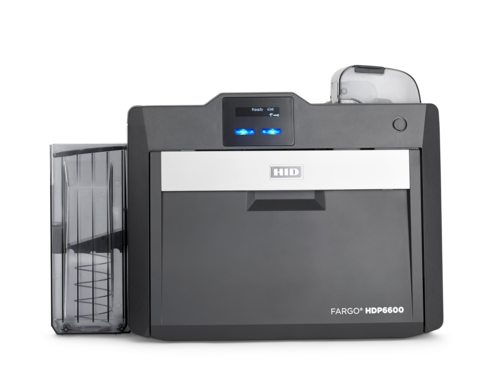

Fargo HDP6600 Retransfer Single or Dual Sided ID Card Printer

Fargo HDP6600 Retransfer Single or Dual Sided ID Card Printer

Vendor: Fargo View brochure
Low Price Guaranteed

Single Sided Encoding, Programmer Module Options Options

# Name: Qty
94600 Fargo HDP6600 Retransfer Single No Encoding
94601 Fargo HDP6600 Retransfer Single Contactless Encoder
94602 Fargo HDP6600 Retransfer Single Programmer Module

Single Sided (with Flattener) Encoding, Programmer Module Options Options

# Name: Qty
94610 Fargo HDP6600 Retransfer Single (with Flattener) No Encoding
94611 Fargo HDP6600 Retransfer Single (with Flattener) Contactless Encoder
94612 Fargo HDP6600 Retransfer Single (with Flattener) Programmer Module

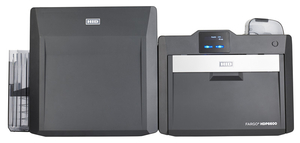

Single Sided and Single Sided Lamination Encoding, Programmer Module Options

# Name: Qty
94620 Fargo HDP6600 Retransfer Single, Single Lamination No Encoding
94621 Fargo HDP6600 Retransfer Single, Single Lamination Contactless Encoding
94622 Fargo HDP6600 Retransfer Single, Single Lamination Programmer Module

Single Sided and Single Sided Lamination (with Flattener) Encoding, Programmer Module Options

# Name: Qty
94630 Fargo HDP6600 Retransfer Single, Single Lamination (with Flattener) No Encoding
94631 Fargo HDP6600 Retransfer Single, Single Lamination (with Flattener) Contactless Encoding
94632 Fargo HDP6600 Retransfer Single, Single Lamination (with Flattener) Programmer Module

Dual Sided Encoding Options

# Name: Qty
94640 Fargo HDP6600 Retransfer Dual No Encoding
94641 Fargo HDP6600 Retransfer Dual Contactless Encoder
94642 Fargo HDP6600 Retransfer Dual Programmer Module
94643 Fargo HDP6600 Retransfer Dual Magnetic Stripe Encoder
94644 Fargo HDP6600 Retransfer Dual Contact Chip Encoder
94645 Fargo HDP6600 Retransfer Dual Contactless Encoder and Magnetic Stripe Encoder
94646 Fargo HDP6600 Retransfer Dual Contactless Encoder and Contact Chip Encoder
94647 Fargo HDP6600 Retransfer Dual Contact Chip Encoder and Magnetic Stripe Encoder
94648 Fargo HDP6600 Retransfer Dual Contactless Encoder and Contact Chip Encoder and Magnetic Stripe Encoder

Dual Sided and Single Sided Lamination Encoding, Programmer Module Options

# Name: Qty
94660 Fargo HDP6600 Retransfer Dual, Single Lamination No Encoding
94661 Fargo HDP6600 Retransfer Dual, Single Lamination Contactless Encoding
94662 Fargo HDP6600 Retransfer Dual, Single Lamination Programmer Module
94663 Fargo HDP6600 Retransfer Dual, Single Lamination Magnetic Encoding
94664 Fargo HDP6600 Retransfer Dual, Single Lamination Contact Chip Encoder
94665 Fargo HDP6600 Retransfer Dual, Single Lamination Magnetic and Contactless Encoding
94666 Fargo HDP6600 Retransfer Dual, Single Lamination Contact and Contactless Encoding
94667 Fargo HDP6600 Retransfer Dual, Single Lamination Magnetic and Contact Encoding
94668 Fargo HDP6600 Retransfer Dual, Single Lamination Magnetic. Contact and Contactless Encoding

Dual Sided and Single Sided Lamination (with Flatenner) Encoding, Programmer Module Options

# Name: Qty
94670 Fargo HDP6600 Retransfer Dual, Single Lamination (with Flattener) No Encoding
94671 Fargo HDP6600 Retransfer Dual, Single Lamination (with Flattener) Contactless Encoding
94672 Fargo HDP6600 Retransfer Dual, Single Lamination (with Flattener) Programmer Module
94673 Fargo HDP6600 Retransfer Dual, Single Lamination (with Flattener) Magnetic Encoding
94674 Fargo HDP6600 Retransfer Dual, Single Lamination (with Flattener) Contact Chip Encoding
94675 Fargo HDP6600 Retransfer Dual, Single Lamination (with Flattener) Magnetic and Contactless Encoding
94676 Fargo HDP6600 Retransfer Dual, Single Lamination (with Flattener) Contact and Contactless Encoding
94677 Fargo HDP6600 Retransfer Dual, Single Lamination (with Flattener) Magnetic and Contact Encoding
94678 Fargo HDP6600 Retransfer Dual, Single Lamination (with Flattener) Magnetic, Contact and Contactless Encoding

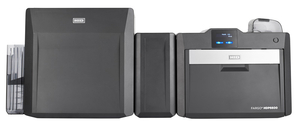

Dual Sided and Dual Sided Lamination Encoding, Programmer Module Options

# Name: Qty
94680 Fargo HDP6600 Retransfer Dual, Dual Lamination No Encoding
94681 Fargo HDP6600 Retransfer Dual, Dual Lamination Contactless Encoding
94682 Fargo HDP6600 Retransfer Dual, Dual Lamination Programmer Module
94683 Fargo HDP6600 Retransfer Dual, Dual Lamination Magnetic Encoding
94684 Fargo HDP6600 Retransfer Dual, Dual Lamination Contact Chip Encoding
94685 Fargo HDP6600 Retransfer Dual, Dual Lamination Magnetic and Contactless Encoding
94686 Fargo HDP6600 Retransfer Dual, Dual Lamination Contact and Contactless Encoding
94687 Fargo HDP6600 Retransfer Dual, Dual Lamination Magnetic and Contact Chip Encoding
94688 Fargo HDP6600 Retransfer Dual, Dual Lamination Magnetic, Contact Chip, and Contactless Encoding

Dual Sided and Dual Sided Lamination (with Flatenner) Encoding, Programmer Module Options

# Name: Qty
94690 Fargo HDP6600 Retransfer Dual, Dual Lamination (with Flattener) No Encoding
94691 Fargo HDP6600 Retransfer Dual, Dual Lamination (with Flattener) Contactless Encoding
94692 Fargo HDP6600 Retransfer Dual, Dual Lamination (with Flattener) Programmer Module
94693 Fargo HDP6600 Retransfer Dual, Dual Lamination (with Flattener) Magnetic Encoding
94694 Fargo HDP6600 Retransfer Dual, Dual Lamination (with Flattener) Contact Chip Encoding
94695 Fargo HDP6600 Retransfer Dual, Dual Lamination (with Flattener) Magnetic and Contactless Encoding
94696 Fargo HDP6600 Retransfer Dual, Dual Lamination (with Flattener) Contact and Contactless Encoding
94697 Fargo HDP6600 Retransfer Dual, Dual Lamination (with Flattener) Magnetic and Contact Chip Encoding
94698 Fargo HDP6600 Retransfer Dual, Dual Lamination (with Flattener) Magnetic, Contact Chip and Contactless Encoding

Description

Ideal for organizations of any size that need retransfer printing technology to routinely issue secure and durable, high definition IDs or cards at high speeds, the FARGO® HDP6600 from HID Global is a cost-effective, eco-friendly and reliable solution that provides high resolution 600 dpi printing capability for superior text and image quality as well as wasteless lamination for an ultra-low cost-per-card.

Designed to meet the needs of cost- and efficiency-conscious organizations, the HDP6600 produces cards at unprecedented speeds — and leveraging HID Global’s innovative wasteless lamination technology, the HDP6600 can help cut your high-volume lamination materials cost by up to 40%.

The HDP6600 also features HID Global’s patent-pending iON™ technology, allowing the unit to reach optimal operating temperature in under 60 seconds, expediting the retransfer printing and lamination processes. Due to the built-in intelligent temperature control, it has been GreenCircle® Certified as significantly reducing energy consumption over comparable card printing and lamination systems.

Only the HID FARGO HDP6600 offers:

  • Ability to print up to 230 cards per hour (YMCK with transfer)
  • Patent-pending iON™ technology for unparalleled printer readiness and intelligent temperature control
  • Retransfer-based wasteless lamination
  • Simultaneous print and retransfer
  • GreenCircle® certified energy savings

Built on six generations of proven retransfer technology, the HDP6600 offers the versatility to meet your card application needs today and in the future. For one-step, inline printing and encoding, HID Global offers multiple, field-upgradable encoder options.

Fast, innovative, feature-rich and reliable, the HID FARGO HDP6600 sets the new customer demanded standard in retransfer printing.

Specifications

Print Method: HDP® Dye-Sublimation / Resin Thermal Transfer

Resolution: 600 dpi (23.6 dots/mm)

Colors: Up to 16.7 million / 256 shades per pixel

Flattener: Optional

Print Ribbon Options:

  • Full-color with resin black, YMCK, 750 prints
  • Full-color with two resin black panels, YMCKK, 600 prints

Additional ribbon options coming soon. Please contact your HID Global Sales Representative or local HID Integrator for more information.

HDP Film Options: Clear, 1500 prints

Overlaminate Options: COMING SOON - Overlaminate options will be made available with the upcoming release of the HDP6600 lamination module. Please contact your HID Global Sales Representative or local HID Integrator for additional information.

Print Speed:

Batch Mode:

  • Up to 230 cards per hour / 16 seconds per card (YMCK with transfer)
  • Up to 126 cards per hour / 29 seconds per card (YMCKK with transfer)

Accepted Standard Card Sizes: CR-80 (3.375”L x 2.125”W / 85.6mmL x 54mmW)

Print Area: Over-the-edge on CR-80 cards

Accepted Card Thickness: .030” (30 mil) to .040” (40 mil) / .762mm to 1.01mm

Accepted Card Types: ABS, PVC, PET, PETG, proximity, smart and mag stripe cards, optical memory cards, polycarbonate.

Input Card Cartridge Capacity: 100 cards (.030” / .762mm)

Output Hopper Card Capacity: 200 cards (.030” / .762mm)

Card Cleaning: Replaceable cleaning roller (included with each print ribbon)

Memory: 1 GB RAM

Display: User-friendly, SmartScreenTM Graphical OLED Control Panel

Software Drivers: Windows® 10 / 8.1 / 8 / 7 / Server 2016 / Server 2012 / Server 2012 R2 / Server 2008 / Server 2008 R2

Supported Access Control Credential Programming:iCLASS® Standard/SE/SR/Seos, MIFARE Classic®, MIFARE DESFire® EV1, HID Prox (Also see the FARGO HDP6600 Card Encoding Modules Datasheet for additional information)

Encoding Options: Supported smart card and magnetic stripe technologies: 125kHz (HID Prox) reader; 13.56 MHz (iCLASS® Standard/SE/ SR/Seos, MIFARE Classic®, MIFARE Plus®, MIFARE DESFire® EV1, ISO 14443 A/B, ISO 15693) read/write encoder; contact smart card encoder reads from and writes to all ISO7816 1/2/3/4 memory and microprocessor smart cards (T=0, T=1) as well as synchronous cards; ISO magnetic stripe encoding, dual high- and low-coercivity, tracks 1, 2 and 3.

Interface: USB 2.0 and Ethernet with internal print server

Operating Temperature: 65° to 90° F / 18° to 32° C

Humidity: 20 - 80% non-condensing

Dimensions:

  • HDP6600: 13.0”H x 14.5”W x 12.0”D / 330mmH x 368mmW x 305mmD
  • HDP6600 + Dual-side Module: 13.0”H x 19.75”W x 12.0”D / 330mmH x 502mmW x 305mmD

Weight:

  • HDP6600: 21.0 lbs. / 9.5 kg
  • HDP6600 + Dual-side Module: 24.6 lbs. / 11.2 kg

Certifications: UL, CE, FCC, BSMI, MIC, EAC, RCM, CCC, KCC, S-Mark

Supply Voltage: 100-240 VAC, 2.5A max

Supply Frequency: 50 Hz / 60 Hz

Environmental/Energy Saving Feature: GreenCircle® Certified card printer (base models only without encoders)

Warranty:

  • Printer – Three years including one year of free printer loaner support (U.S. only); optional Extended Warranty Program (U.S. only)
  • Printhead – Lifetime; unlimited pass

FARGO Secure Materials: FARGO Card Printer/Encoders require highly specialized media to function properly. To maximize printed card quality and durability, printhead life and printer/encoder reliability, use only HID Secure Materials.

HID warranties are void, where not prohibited by law, when non-HID Secure Materials are used.

Software: FARGO diagnostic utility with Color Assist spot-color matching included with printer driver
