Fargo HDP5000 Single Sided Bundle System

Fargo HDP5000 Single Sided Bundle System

Vendor: fargo View brochure
Low Price Guaranteed

Printers Connectivity

# Name: Qty
USB - Included
Add Ethernet and Wifi + $499


# Name: Qty
No Encoding
Add Magnetic Stripe Encoding + $499
Add HID Prox Encoding + $699
Add Contact Smart Card with Contactless and HID Prox Encoding (iClass SE and Mifare/Desfire) + $895


# Name: Qty
No Hopper
Add Same Sided Input and Output hoppers + $200


# Name: Qty
Asure ID Solo Software - Included
Upgrade to Asure ID Express + $350

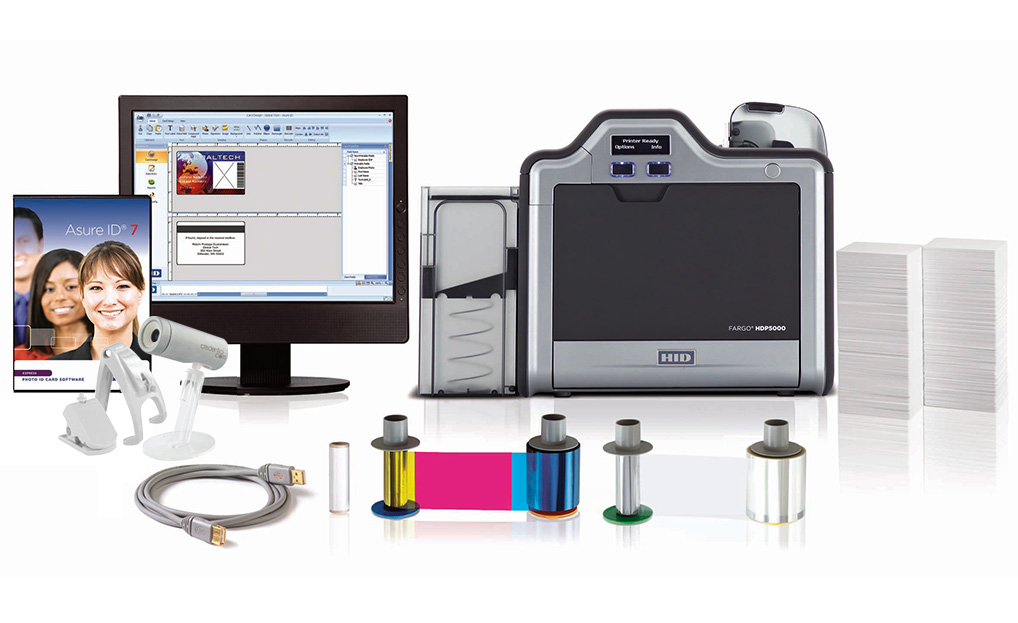

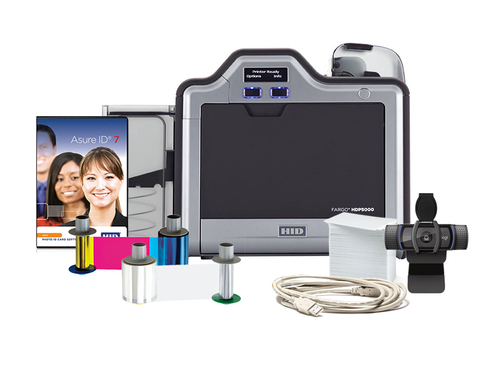

The Fargo HDP5000 Single-Sided Bundle System is your answer to ID cards that feature high definition, vivid colors, and crisp images. If it’s important to project a professional image with high definition image quality that looks more like a sharp glossy photo, then the Fargo HDP5000 Single-Sided Bundle System comes with everything you need:

  • Fargo HDP5000 Single- Sided ID Card Printer
  • Asure ID Express ID Card Printer Software
  • Fargo Full Color Ribbon YMCK (500 Prints)
  • Fargo Clear HDP Film (1,500 Prints)
  • 500 White PVC Cards
  • High-end USB digital Web camera

The secret to its success is the Fargo HDP5000 ID Card Printer prints on film instead of directly on the card. This means that uneven surfaces won’t compromise your card’s image quality. The Fargo HDP5000 prints up to the edge of smart chip contacts and over the edge of the card.

This professional card printing solution is perfect for:

  • Corporate ID
  • National ID
  • Driver’s licenses
  • Government or military
  • State and local government
  • Transportation
  • Casinos
  • Health care
  • Universities

Exceptionally reliable printing

Since the HDP5000 prints on a film, its printhead never comes in contact with card surfaces or debris. This means the Fargo HDP5000 never gets damaged during the printing process. In fact, it comes with a lifetime warranty.

Simple and easy to use

The Fargo HEP5000 takes simple operation to the next level with only minimal training needed. Cards, ribbons, and overlamintes load in a snap, literally, by the cartridge-based system. Faster printing, combined with a dual card input hopper for multiple card types means you spend less time on the biggest production jobs.

Produce high-def cards anywhere

Thanks to the printer’s ethernet port and internal print server options, you can connect your HDP5000 to your network and print at multiple locations. Or if you’re a university or corporate campus, you can have an array of printer/encoders for high-volume production. Whatever your needs, the Fargo HDP5000 delivers. Fast.


Print Method

HDP Dye-Sublimation / Resin Thermal Transfer


300 dpi (11.8 dots/mm)


Up to 16.7 million / 256 shades per pixel

Print Speed (batch mode)

  • Up to 24 seconds per card / 150 cards per hour (YMC with transfer)
  • Up to 29 seconds per card / 124 cards per hour (YMCK with transfer)
  • Up to 40 seconds per card / 90 cards per hour (YMCKK with transfer)
  • Up to 35 seconds per card / 102 cards per hour (YMCK with transfer and dual-sided, simultaneous lamination)
  • Up to 48 seconds per card / 75 cards per hour (YMCKK with transfer and dual-sided, simultaneous lamination)

Accepted Standard Card Sizes

CR-80 (3.370˝ L x 2.125˝ W / 85.6 mm L x 54 mm W)

Accepted Card Thickness

.030˝ (30 mil) to .050˝ (50 mil) / .762 mm to 1.27 mm

Input Card Cartridge Capacity

100 cards (.030˝ / .762 mm)

Output Hopper Card Capacity:

200 cards (.030˝ / .762 mm)

Software Drivers

  • Windows 8/ 7/ Vista (32bit & 64 bit) / Server 2008 & 2003/ XP
  • Mac OS X v10.6 / v10.5
  • Linux

Print Area

Over-the-edge on CR-80 cards


Printer - Three years including one year of free printer loaner support (U.S. only); optional Extended Warranty Program (U.S. only)

Printhead - Lifetime; unlimited pass


  • Dual card input hopper
  • Card lamination module – single-sided or dual-sided (simultaneous)
  • Smart card encoding (contact/contactless)
  • Dual-sided printing
  • Door and cartridge locks
  • Printer cleaning kit
  • Magnetic stripe encoding
  • 200-card input hopper
  • Secure Proprietary Consumables System
  • Custom Secure Holographic HDP Film and Overlaminate

Included Software

FARGO Workbench Diagnostic Utility with Color Assist spot-color matching
