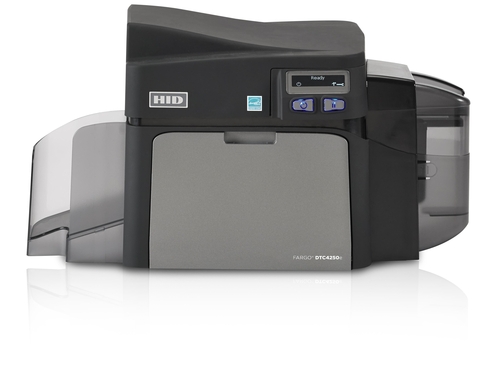

Fargo DTC4250e Single or Dual Sided ID Card Printer

Fargo DTC4250e Single or Dual Sided ID Card Printer

Vendor: Fargo View brochure
Low Price Guaranteed

Single Sided (100 Card Input Hopper) Encoding, Interface Options

# Name: Qty
52000 Fargo DTC4250e Single Sided (100 Card Input Hopper) Ethernet with Internal Print Server + USB
52006 Fargo DTC4250e Single Sided (100 Card Input Hopper) Ethernet with Internal Print Server + USB + HID Prox, iCLASS, MIFARE/DESFire, and Contact Smart Card Encoder (Omnikey Cardman 5121 and 5125)
52008 Fargo DTC4250e Single Sided (100 Card Input Hopper) Ethernet with Internal Print Server + USB + HID iCLASS SE, iCLASS, MIFARE/DESFire and HID PROX (Omnikey Cardman 5127)
52010 Fargo DTC4250e Single Sided (100 Card Input Hopper) ISO Magnetic Stripe Encoder
52016 Fargo DTC4250e Single Sided (100 Card Input Hopper) ISO Magnetic Stripe Encoder + HID Prox, iCLASS, MIFARE/DESFire, and Contact Smart Card Encoder (Omnikey Cardman 5121 and 5125)
52018 Fargo DTC4250e Single Sided (100 Card Input Hopper) ISO Magnetic Stripe Encoder + HID iCLASS SE, iCLASS, MIFARE/DESFire and HID PROX (Omnikey Cardman 5127)

Single Sided (Same-Side Card Hopper) Encoding, Interface Options

# Name: Qty
52200 Fargo DTC4250e Single Sided (Same-Side Card Hopper) Ethernet with Internal Print Server + USB
52206 Fargo DTC4250e Single Sided (Same-Side Card Hopper) Ethernet with Internal Print Server + USB + HID Prox, iCLASS, MIFARE/DESFire, and Contact Smart Card Encoder (Omnikey Cardman 5121 and 5125)
52208 Fargo DTC4250e Single Sided (Same-Side Card Hopper) Ethernet with Internal Print Server + USB + HID iCLASS SE, iCLASS, MIFARE/DESFire and HID PROX (Omnikey Cardman 5127)
52210 Fargo DTC4250e Single Sided (Same-Side Card Hopper) ISO Magnetic Stripe Encoder
52216 Fargo DTC4250e Single Sided (Same-Side Card Hopper) ISO Magnetic Stripe Encoder + HID Prox, iCLASS, MIFARE/DESFire, and Contact Smart Card Encoder (Omnikey Cardman 5121 and 5125)
52218 Fargo DTC4250e Single Sided (Same-Side Card Hopper) ISO Magnetic Stripe Encoder + HID iCLASS SE, iCLASS, MIFARE/DESFire and HID PROX (Omnikey Cardman 5127)

Dual Sided (100 Card Input Hopper) Encoding, Interface Options

# Name: Qty
52100 Fargo DTC4250e Dual Sided (100 Card Input Hopper) Ethernet with Internal Print Server + USB
52106 Fargo DTC4250e Dual Sided (100 Card Input Hopper) Ethernet with Internal Print Server + USB + HID Prox, iCLASS, MIFARE/DESFire, and Contact Smart Card Encoder (Omnikey Cardman 5121 and 5125)
52108 Fargo DTC4250e Dual Sided (100 Card Input Hopper) Ethernet with Internal Print Server + USB + HID iCLASS SE, iCLASS, MIFARE/DESFire and HID PROX (Omnikey Cardman 5127)
52110 Fargo DTC4250e Dual Sided (100 Card Input Hopper) ISO Magnetic Stripe Encoder
52116 Fargo DTC4250e Dual Sided (100 Card Input Hopper) ISO Magnetic Stripe Encoder + HID Prox, iCLASS, MIFARE/DESFire, and Contact Smart Card Encoder (Omnikey Cardman 5121 and 5125)
52118 Fargo DTC4250e Dual Sided (100 Card Input Hopper) ISO Magnetic Stripe Encoder + HID iCLASS SE, iCLASS, MIFARE/DESFire and HID PROX (Omnikey Cardman 5127)

Dual Sided (Same-Side Card Hopper) Encoding, Interface Options

# Name: Qty
52300 Fargo DTC4250e Dual Sided (Same-Side Card Hopper) Ethernet with Internal Print Server + USB
52306 Fargo DTC4250e Dual Sided (Same-Side Card Hopper) Ethernet with Internal Print Server + USB + HID Prox, iCLASS, MIFARE/DESFire, and Contact Smart Card Encoder (Omnikey Cardman 5121 and 5125)
52308 Fargo DTC4250e Dual Sided (Same-Side Card Hopper) Ethernet with Internal Print Server + USB + HID iCLASS SE, iCLASS, MIFARE/DESFire and HID PROX (Omnikey Cardman 5127)
52310 Fargo DTC4250e Dual Sided (Same-Side Card Hopper) ISO Magnetic Stripe Encoder
52316 Fargo DTC4250e Dual Sided (Same-Side Card Hopper) ISO Magnetic Stripe Encoder + HID Prox, iCLASS, MIFARE/DESFire, and Contact Smart Card Encoder (Omnikey Cardman 5121 and 5125)
52318 Fargo DTC4250e Dual Sided (Same-Side Card Hopper) ISO Magnetic Stripe Encoder + HID iCLASS SE, iCLASS, MIFARE/DESFire and HID PROX (Omnikey Cardman 5127)

Description

Medium- to large-sized companies, schools, and government organizations all use the Fargo DTC4250e ID Card Printer for its high-volume output of secure cards and personalized credentials. If you’re looking for a long-term, reliable solution that can withstand everyday use, you need the Fargo DTC4250e ID Card Printer.

From plastic loyalty cards to sophisticated access cards with embedded electronics, you can get professional ID cards with the Fargo DTC4250e ID Card Printer, including encoder. And when your business needs change, the Fargo DTC4250e ID Card Printer can be easily adapted to meet your new needs.

This mid-range professional card printing solution is ideal for:

  • Corporate ID
  • Transportation
  • Health Care
  • Universities
  • Corrections
  • Sports & Leisure
  • Schools
  • Health Clubs
  • Retail & Loyalty
  • Casinos
  • Manufacturing Plants
  • Libraries
  • Not-For-Profit/NGOs

Protect your cards from forgery

The Fargo DTC4250e ID Card Printer comes with additional security features that reduce or eliminate the risk that your printed ID cards will be replicated. From a password protected printer that only allows authorized personnel to print cards to data encryption, you can get highly customized cards that are hard to copy.

Optional upgrades for future needs

The Fargo DTC4250e ID Card Printer is both flexible and scalable with a unique modular design that makes it easy to upgrade when your needs change. You can choose dual-sided printing that gives you bar codes or digital signatures on the back and also holographic or fluorescent overlamintes that increase your cards’ security and eliminate the possibility of forgery.

Plenty of options for further functionality

The Fargo DTC4250e ID Card Printer is compatible with other Fargo products so that you can create the system you need for your security requirements. For example, the iCLASS SE embedded encoder allows you to create custom smart cards, and the Assure ID card personalization software and EasyLobby secure visitor management solutions give you access to additional features.

Specifications

Print Method

Dye-sublimation / resin thermal transfer

Resolution

300 dpi (11.8 dots/mm) continuous tone

Colors

Up to 16.7 million / 256 shades per pixel

Print Ribbon Options

Options include easy-to-use ribbon with disposable ribbon cartridge (EZ) and more economical and eco-friendly refill ribbon for cartridge (ECO).

Both EZ and ECO

  • Resin black (standard), 1000 prints

EZ only

  • Full-color with resin black and overlay panel, YMCKO, 250 prints
  • Full-color half-panel with resin black and overlay panel, YMCKO, 350 prints
  • Full-color with two resin black panels and overlay panel, YMCKOK, 200 prints
  • Full-color with fluorescing, resin black and overlay panel, YMCFKO, 200 prints
  • Full-color with fluorescing, two resin black panels and overlay panel, YMCFKOK, 175 prints
  • Resin black and overlay panel, KO, 500 prints
  • Dye-sublimation black and overlay panel, BO, 500 prints
  • Resin green, blue, red, white, silver, gold, 1000 prints
  • Resin silver and gold metallic, 500 prints

Rewrite technology - no ribbon is required

Print Speed

6 seconds per card (K)

8 seconds per card (KO)

16 seconds per card (YMCKO)

Accepted Standard Card Sizes

  • CR-80 (3.375? L x 2.125? W / 85.6 mm L x 54 mm W)
  • CR-79 adhesive back (3.313? L x 2.063? W / 84.1 mm L x 52.4 mm W)

Print Area

  • CR-80 edge-to-edge (3.36? L x 2.11? W / 85.3 mm L x 53.7 mm W)
  • CR-79 (3.3? L x 2.04? W / 83.8 mm L x 51.8 mm W)

Accepted Card Thickness

Print only: .009? - .040? / 9 mil - 40 mil / .229 mm - 1.016 mm

Print / lamination: .030? - .040? / 30 mil - 40 mil / .762 mm - 1.02 mm

Accepted Card Types

  • PVC or polyester cards with polished PVC finish
  • Monochrome resin required for 100% polyester cards
  • Optical memory cards with PVC finish
  • Rewrite

Input Hopper Card Capacity

Dual-input card hopper (200 cards)

Output Hopper Card Capacity

Up to 100 cards (.030? / .762 mm)

Reject Hopper Card Capacity

Up to 100 cards (.030? / .762 mm) - same-side input / output card hopper or lamination module required

Card Cleaning

Card cleaning roller integrated into ribbon cartridge; cleaning roller is automatically replaced with each ribbon change

Memory

32 MB RAM

Software Drivers

Windows XP / Windows Vista (32 bit & 64 bit) / Server 2003 & 2008 / Windows 7 / Windows 8 (32 bit & 64 bit)

MAC OS X 10.5/10.6/10.7/10.8

Linux

Interface

USB 2.0 and Ethernet with internal print server

Operating Temperature

65° to 80° F / 18° to 27° C

Humidity

20—80% non-condensing

Dimensions

Single-sided printer: 9.8? H x 18.1? W x 9.2? D / 249 mm H x 460 mm W x 234 mm D

Weight

Single-sided printer: 9lbs / 4.1 Kg;

Agency Listings

Safety: UL 60950-2, CSA C22.2 (60950-07), and CE

EMC: FCC Class A, CE (EN 55022 Class A, EN 55024), CCC, BSMI, KC

Environmental Features

All configurations without a lamination module are ENERGY STAR qualified printers

Supply Voltage

100-240Vac, 50-60Hz, 1.6 Amps max

Supply Frequency

50 Hz / 60 Hz

Warranty

Printer — three years

Printhead — three years, unlimited pass with UltraCard

Options

Single wire Ethernet and USB 2.0 interface for inline printing and encoding (note: single wire Ethernet encoding is only available for iCLASS, MIFARE, and contact smart card encoding)

Dual-sided printing module

Same-side input/output card hopper

Smart card encoding modules (contact/contactless)

Magnetic stripe encoding module

Software

Swift ID embedded badging application

FARGO Workbench diagnostic utility with Color Assist spot-color matching

Display

User friendly, SmartScreen graphical display

Printer Security

Printer access password protected
