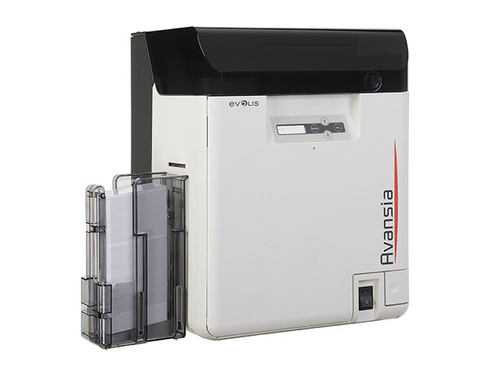

Evolis Avansia Dual Sided Photo ID System

Vendor: Evolis SKU: AvansiaSystem View brochure

Meant to be a robust system, the Evolis Avansia Dual Sided Photo ID System is ideal for issuing:

  • Corporate ID cards
  • Secure access badges
  • Student cards
  • Payment cards
  • Loyalty cards
  • Gift cards
  • National ID cards
  • Driver’s licenses
  • And much more...

Be more productive:

With the Evolis Avansia Dual Sided Photo ID System, you can print more than 140 single-sided color cards per hour. And with the high capacity feed and output trays that hold 250 cards each, combined with a high capacity 500 prints per roll consumables, you’ll be able to issue cards fast with little to no interruptions.

Ready for any tough environment:

Thanks to an airtight structure, the Evolis Avansia Dual Sided Photo ID System gives you robust, reliable production in even the harshest environments with dust and heat. And a 3-year standard warranty and life time warranty on the print head means you’ll be using this printer system for the long term.

Works with all card types:

PVC, PET, polycarbonate, ABS, and smart contact and contactless cards with uneven surfaces are no match for the Evolis Avansia Dual Sided Photo ID System, thanks to a built-in card flattener for perfect results every time.

Add in extra security options:

The Evolis Avansia Dual Sided Photo ID System has plenty of factory-configured encoding options that can be combined to give you the system you need to meet your specific requirements. Data encoding, magnetic stripe, contact and contactless smart cards—whatever security you need, the Evolis Avansia Dual Sided Photo ID System can provide.

Physical security benefits include:

As an added security feature, the Evolis Avansia Dual Sided Photo ID System can be easily locked by removing the RFID electronic key, preventing unauthorized attempts to use the printer. There’s also a mechanical key lock as an additional option to keep your consumables from tampering.

If quality is your first consideration when printing high definition cards for your ID cards solution, you need to look at the Evolis Avansia Dual Sided Photo ID System. Perfect for solutions that issue cards in medium to large quantities, the Evolis Avansia Dual Sided Photo ID System gives you an astonishing 600dpi resolution using retransfer technology direct-to-card, over-the-edge printing for high quality output.

General features

  • Dual-sided printing (standard)
  • Reverse transfer printing
  • Over the edge printing
  • Color dye sublimation and resin monochrome retransfer
  • 600 dpi print head (23.6 dots/mm)
  • Bitmap: 24 bits, R/G/B 256 level
  • Printout: Y/M/C 256 level
  • 64 MB of memory (RAM)

Printing performances

Full card:

  • Single side (YMCK): 25 s/card - 144 cards/hour
  • Dual side (YMCKK): 37.5 s/card - 96 cards/hour

Additional encoding modules

  • Available modules:

    1. Magnetic stripe encoder ISO 7811

    2. Dual contact and contactless encoder

  • Encoder connectivity: internal USB hub, 1 port available
  • Encoding options can be combined
  • Factory ordered

Interfaces

  • USB 2.0
  • Ethernet TCP-IP 10BaseT, 100BaseT (Traffic Led)

Safety

  • RFID locking key
  • Support for security lock (Kensington type)
  • Centralized locking system to secure access to blank cards, ribbon and film (optional)
  • IPSec encrypted networking security

Card management and specifications

  • Card feeder: 250 cards (0.76 mm — 30 mil)

  • Card output hopper: 250 cards (0.76 mm — 30 mil)
  • Card reject tray: 30 cards (0.76 mm — 30 mil)
  • Card thickness: 0.76 mm (30 mil), manual adjustment
  • Card types:
    1. PVC cards
    2. Composite PVC cards
    3. PET-F cards
    4. PET-G cards
    5. Polycarbonate cards
    6. ABS cards
  • Card format: ISO CR80 - ISO 7810 (53.98 x 85.60 mm — 3.370” x 2.125”)

Evolis High Trust Ribbons

To maximize the quality and durability of printed cards, the lifespan of the print head and the overall printer reliability, use Evolis High Trust® ribbons.

Ribbon capacity:

  • Clear and holographic: 500 prints/roll
  • YMCK: 500 prints/roll
  • YMCKK: 400 prints/roll
  • YMCKI (for smart cards and magnetic stripes): 400 prints/roll
  • YMCKH: 400 prints/roll
  • YMCFK (UV ink): 400 prints/roll

Software

  • Compatible with Windows® XP SP2 32, Vista 32, W7 32/64 and W8 32/64
  • Delivered with cardPresso XXS for designing and editing badges
  • Internal database (unlimited records)
  • Signature acquisition (compatible with Evolis Sig100 and Sig200 signature pads)

Display

  • Two-line LCD display and LED status indicator
  • Printer graphical notifications: empty input hopper, empty/low level ribbon alert...
  • Certifications and statement of compliance
  • RoHS
  • CE, FCC, UL, IEC

Power supply

  • AC90-125V, 220-240V, 50/60Hz

Operating environment

  • Min/max operating temperature: 10° / 30° C (50° / 86° F)
  • Humidity: 20% to 80% non-condensing
  • Min/max storage temperature: -20° / 60° C (-4° / 140° F)
  • Storage humidity: 20% to 90% non-condensing
  • Operating ventilation: open air

Sound (Evaluated according to the ISO 7779 Standard)

  • Sound pressure in assistant positions LpAm (color mode YMCK)
  • When operating: 53 dB (A)
  • While waiting: 45 dB (A)

Packaging content

  • Printer
  • CD-ROM with printer drivers, user manuals and Quick Start
  • Cleaning materials
  • USB cable
  • Output hopper
  • Reject tray
  • Power cord

Size and weight

  • Dimensions (H x W x D):
  • 436 x 340 x 297 mm (17.16” x 13.38” x 11.69”)
  • Weight: 20 kg (44.09 lbs)

Warranty

  • 3 years for printer, lifetime warranty on print head
