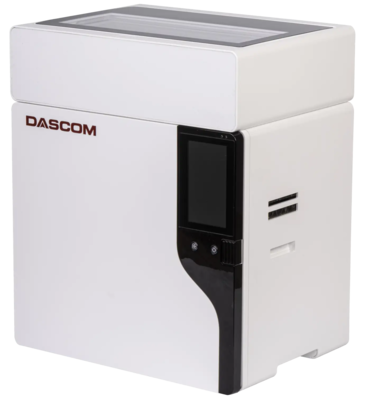

Dascom DC-8600 Retransfer Card Printer

Dascom DC-8600 Retransfer Card Printer

Vendor: Dascom View brochure
Low Price Guaranteed

DC-8600 Single Sided Encoding Options

# Name: Qty
28.894.6516 No encoding module
28.894.6369 Contact and contactless
28.894.6540 Magnetic Stripe Encoding

DC-8600 Dual Sided Encoding Options

# Name: Qty
28.894.6519 No encoding module, Single Feeder
28.894.6525 No encoding module, Dual Feeder
28.894.6552 Smart Card (Contact and contactless) Single Feeder
28.894.6501 Smart Card (Contact and contactless) Dual Feeder
28.894.6543 Magnetic Stripe Encoding, Single Feeder
28.894.6549 Magnetic Stripe Encoding, Dual Feeder

Description

Stunning 600 DPI Quality

The DASCOM DC-8600 is a retransfer card printer that delivers exceptionally sharp text, detailed graphics, and over-the-edge full-color images—all at an impressive resolution of 600 DPI. Whether you’re printing microtext or high-resolution logos, the DC-8600 ensures every element on your card stands out.

Retransfer Technology for Durability

Unlike direct-to-card (DTC) printers, the DC-8600 uses reverse transfer to first print onto a clear film, which is then fused to the card surface. This extra layer helps protect against wear, tear, and fading. Your cards not only look great but also last longer—even in high-use applications.

Single-Sided Printing Efficiency

This model is designed specifically for single-sided (simplex) printing, making it a perfect choice for organizations that only require printing on one side of the card. For dual-sided solutions, explore other variants in the DC-8600 series.

Flexible Connectivity

To keep your workflow running smoothly, the DC-8600 includes both USB and Ethernet interfaces. Connect directly to a standalone PC via USB, or deploy the printer on a network to let multiple users print from different workstations—ideal for busy offices and secure facilities.

Enhanced Card Security

For added protection, the DC-8600 supports a variety of encoding options, including magnetic stripe, contact smart cards, and contactless RFID cards (depending on configuration). You can easily upgrade your card program to incorporate access control, payment, or other secure functionalities as needed.

Fast and Reliable Performance

At 600 DPI, you can expect a throughput of approximately 20 seconds per full-color card (single-sided). This means faster operations without compromising quality, making it ideal for high-volume card issuance.

Warranty and Support

The DASCOM DC-8600 comes with a 3-year warranty on the printer and a lifetime warranty on the printhead. Register your printer on the DASCOM website to gain access to firmware updates, in-depth user documentation, and responsive customer support.

Ideal Applications for the DC-8600

  • Corporate and employee ID badges
  • Government or secure access credentials
  • Membership or loyalty cards requiring detailed images
  • Campus and student IDs
  • Payment and banking cards (with appropriate encoders)

Available Options

  • Magnetic stripe encoding module
  • Contact and contactless smart card encoding
  • Cleaning kits and additional retransfer film supplies
  • Extended warranty packages

Supported Operating Systems

The DC-8600 works seamlessly with modern Windows® environments, including Windows 7, 8/8.1, 10, 11, and Server 2012/2016/2019/2022, as well as macOS. Installation is straightforward: simply load the official DASCOM drivers, connect via USB or Ethernet, and start printing high-quality cards right away.

Specifications

Print Method: Retransfer dye-sublimation and resin thermal transfer

Resolution: 600 dpi (23.6 dots/mm)

Colors: Up to 16.7 million for full-color printing, sharp monochrome output

Print Ribbon Options:

  • YMCK (Full-color with transfer film)
  • Monochrome (Black, metallic, or specialty) ribbons
  • YMCKI or YMCKSI ribbons for advanced printing needs

Print Speed:

  • Full-color (YMCK): Up to 170 cards per hour (approx. 20 seconds per card)

Accepted Standard Card Sizes:

  • CR80 (3.375" L x 2.125" W / 85.6 mm L x 53.98 mm W)

Print Area: Edge-to-edge on CR80 format

Accepted Card Thickness: 0.5 – 1.1 mm (20 – 50 mil), depending on media

Accepted Card Types: PVC, composite PVC/PET, and other ISO ID-1 cards with a glossy surface

Input Hopper Card Capacity: Up to 250 cards (0.030" / 0.76 mm)

Output Hopper Card Capacity: Up to 250 cards (0.030" / 0.76 mm)

Card Cleaning: Uses a dedicated cleaning roller or cleaning kit to maintain optimal printhead and roller conditions

Memory: Typically 32 MB (varies by model/region)

Software Drivers: Compatible with Windows® 7, 8/8.1, 10, 11, Server 2012/2016/2019/2022, and macOS

Interface:

  • USB 2.0 (cable included)
  • Ethernet (for network printing)
  • Optional Wi-Fi

Operating Temperature: 59° to 86° F / 15° to 30° C (recommended)

Humidity: 35–95% non-condensing

Dimensions (approx.): 9.76" H x 13.35" W x 16.06" D / 248 mm H x 339 mm W x 408 mm D

Weight: 29.3 lbs (13.3 kg)

Power Supply: 100–240 Vac, 50–60 Hz (auto-switching)

Warranty: 3-year warranty on the printer and a lifetime warranty on the printhead

Optional Modules & Accessories:

  • Magnetic stripe encoding (ISO 7811)
  • Smart card encoding (contact or contactless)
  • Cleaning kits for routine maintenance
  • Customized security or holographic overlays

Included Software: Standard printer drivers; optional DASCOM CardEditor software for basic design and layout
