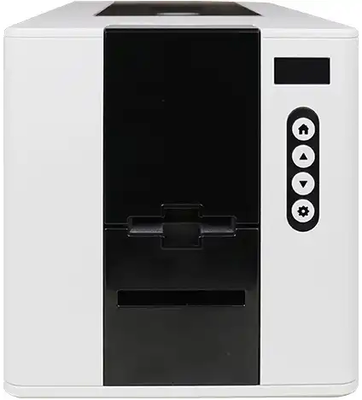

The DASCOM DC-2300 is a direct-to-card (DTC) printer that delivers sharp text, vibrant full-color images, and crisp monochrome prints—all in a compact, desktop-friendly design. With a resolution of up to 300 x 1200 dpi, it ensures your employee badges, membership cards, and security passes are sharp and professional.
Engineered for ease of use, the DC-2300 includes a front-loading card hopper and an intuitive ribbon cartridge system. Users can swap out ribbons quickly with minimal downtime, and the straightforward printer driver interface provides step-by-step guidance for setup and operation. Whether it’s your first time printing an ID badge or you’re a seasoned card-printing pro, you’ll appreciate how simple it is to get started.
When you need to produce cards on demand, the DC-2300 won’t keep you waiting. In full-color (YMCKO) mode, you can print up to 180 cards per hour, while monochrome printing reaches speeds of up to 450 cards per hour. With these swift print speeds, you’ll spend less time waiting and more time focusing on your core tasks.
To ensure a smooth workflow, the DC-2300 supports modern Windows® operating systems—including Windows 7, 8/8.1, 10, and 11. (Not compatible with macOS or Linux.) Simply install the official drivers from DASCOM, connect via USB or Ethernet, and start printing. This flexibility allows you to easily integrate the printer into a wide variety of IT environments.
For added security, the DC-2300 offers optional magnetic stripe and smart card encoding modules (depending on configuration). This means you can add an extra layer of protection and functionality to your cards, ideal for access control or payment applications. Additionally, the compact footprint makes the DC-2300 easy to place in offices, schools, or retail settings where space is at a premium.
The DASCOM DC-2300 includes a 3-year limited warranty, ensuring reliable performance and peace of mind.
Print Method: Direct-to-card (DTC) dye sublimation / resin thermal transfer
Resolution: 300 dpi (11.8 dots/mm), with options for enhanced resolution of 300 x 600 dpi and 300 x 1200 dpi
Colors: Up to 16.7 million for full-color printing, sharp monochrome output
Print Ribbon Options:
Print Speed:
Accepted Standard Card Sizes:
Print Area: Edge-to-edge on CR80 format
Accepted Card Thickness: 0.5 – 1.25 mm (20 – 50 mil), depending on media
Accepted Card Types: PVC, composite PVC/PET, and other ISO ID-1 cards with a glossy surface
Input Hopper Card Capacity: Up to 100 cards (0.030" / 0.76 mm)
Output Hopper Card Capacity: Up to 100 cards (0.030" / 0.76 mm)
Card Cleaning: Uses a dedicated cleaning roller or cleaning kit to maintain optimal printhead and roller conditions
Memory: 32 MB
Software Drivers: Compatible with Windows® 7, 8/8.1, 10, and 11
Interface:
Operating Temperature: 60° to 86° F / 15° to 30° C (recommended)
Humidity: 20–80% non-condensing
Dimensions (approx.): 13.85" W x 7.83" H x 8.26" D / 352 mm W x 199 mm H x 210 mm D
Weight: ~6 kg / 13.2 lbs (printer only)
Power Supply: 100–240 Vac, 50–60 Hz (auto-switching)
Warranty: 3-year warranty on the printer and printhead
Optional Modules & Accessories:
Included Software: Standard printer drivers; optional DASCOM CardEditor software for basic design and layout
