brady Product Solution

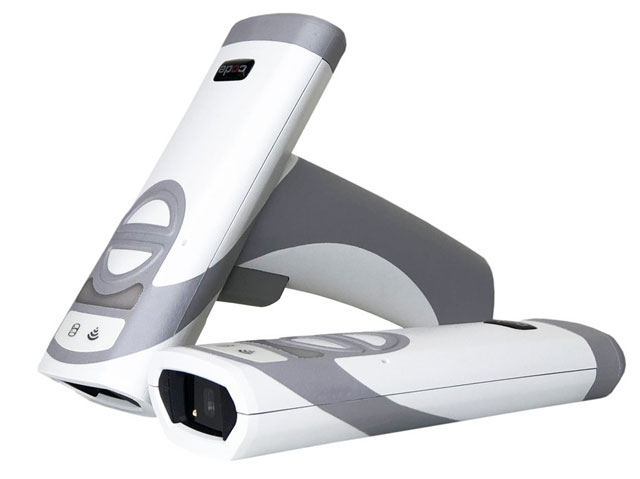

CR2700 Barcode Reader

Choose the configuration, options and quantity that fit your project, then add the selected details to your quote.

brady Vendor

CR2701-100 Item number

Choose Options & Add to Quote View Brochure

Configuration

Choose your options

Select the available configuration details, options and quantity. Your selections will be included with the quote request.

Product Highlights

Ultra-fast, omnidirectional scanning of 1D & 2D barcodes?including small, wide, damaged, curved, shiny, and on-screen codes
Patented glare-reduction technology for reliable reads on reflective surfaces
Bluetooth? 5 Low Energy for enhanced data security and extended battery life; optional USB DirectConnect to Windows
Inductive charging design eliminates exposed contacts and corrosion from disinfectants
Rugged CodeShield? housing with IP65 sealing; built for frequent chemical wipe-downs
Customizable visual, audible, and haptic feedback with multiple programmable buttons
Day/Night mode to minimize flash and audio disturbance in patient care areas
Batch Mode to scan, store, and later offload data via the connected base
Patented dual-field optics (high density + wide field) in a single unit
Durable, quick-release B27 battery with built-in power gauge; fleet-ready service/battery statistics
CortexDM? device management and CortexTools3? configuration; powerful on-device JavaScript data formatting

Technical details

Brand Name: Code? Corporation
Product Type: CR2700 Barcode Reader
Configuration: Palm or Handled
Includes: CR2700 Barcode Scanner and B27 Battery
Color Options: Light Gray or Dark Gray
Connectivity: Bluetooth? 5 Low Energy
Wireless / Wired: Wireless
Dimensions: 2.10" (W) x 1.10" (H) x 5.16" (D)
Weight: 131 g
Cable Length: 1.83 m
Battery: B27 rechargeable lithium-ion battery
Charging: Inductive charging; Quad-Bay Charger and Charging Stations available
Barcode Capability: 1D and 2D barcodes
Sensor: CMOS 1.2 megapixel (1280 x 960) grayscale
Optical Resolution: High Density Field 960x640, Wide Field 960x640
Internal Memory: 1 MB NOR Flash, 16 MB RAM
Durability: IP65 rating against dust and liquid ingress
Housing: CodeShield? disinfectant-ready plastics
Operating Temperature: -20?C to 55?C
Storage Temperature: -20?C to 50?C
Operating Humidity Range: 5% to 95% (non-condensing)
Special Features: Glare reduction, batch mode, customizable feedback, JavaScript support, CortexDM? Device Management ready
Warranty (North America): 3 Years
