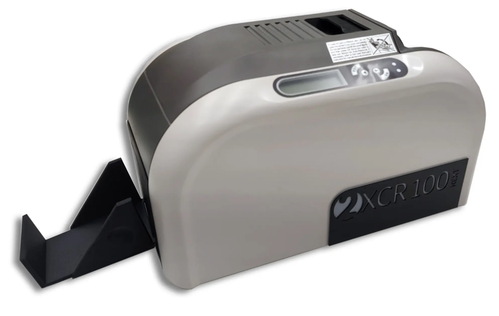

2XCR100next High Security Printer for Large Sized Plastic Badges
Configure 2XCR100next High Security Printer for Large Sized Plastic Badges for your ID card program, review available printer setups and options, and add the right package to your quote.
The 2XCR100next personalizes oversized badges in the proven CR100 format (2.63" x 3.88"). The device delivers high speed in a compact footprint, producing up to 180 full-color cards per hour. In monochrome, output increases to 1,400 cards per hour.
Preprinting the cards is recommended. By personalizing CR100 cards that already include a preprinted frame, you can create highly recognizable, professional large-format badges ideal for hospitals, event venues, security organizations, military installations, and other high-security environments.
The 2XCR100next supports multiple add-on modules that can be installed as needed. Available options include a duplex module for two-sided printing in a single pass, an Ethernet module for network operation, and encoding modules for contactless RFID technologies.
In addition to YMCKO and standard black monochrome ribbons, a wide range of other monochrome ribbon colors is available, providing flexibility for various project requirements.
The 2XCR100next is designed to quickly, efficiently, and cost-effectively produce professional and forgery-resistant oversized CR100 identity cards.
Printing Technology: Dye-Sublimation / Thermal Printing
Interface: USB 1.1 (compatible with USB 2.0)
Ribbons:
- Full-color YMCKO for 400 cards
- Monochrome ribbons for 2,000 prints each, available in Black (K), White, Blue, Red, Green, Silver, and Gold
Printing Resolution: 300 dpi
Printing Speed:
- Full color (YMCKO): up to 180 cards per hour
- Monochrome: up to 1,400 cards per hour
Card Size: CR100 – 98.5 x 67 mm (2.63 x 3.88 in.)
Card Thickness: 0.25 mm to 1.0 mm (10–40 mil)
Card Feeder: 100 cards (0.76 mm / 30 mil)
Output Hopper: 50 cards (0.76 mm / 30 mil)
Drivers: Windows 7–11, Mac OS 10.5–10.8, Linux
Encoding Options: Contactless (RFID) encoder: Mifare
Additional Options: Ethernet interface, Mini-PC for cloud connection, Duplex (Flipturn) Unit
Dimensions (Printer only): 197.8 mm (W) x 354 mm (L) x 204 mm (H), 7.79 in. x 13.94 in. x 8.03 in. (without feeder and output hopper)
Dimensions (Printer boxed): 290 mm (W) x 500 mm (L) x 300 mm (H), 11.42 in. x 19.69 in. x 11.81 in.
Weight: Printer: 4.6 kg / 10.15 lb (without options); Printer boxed: 6.3 kg / 13.89 lb (without options)
Warranty: 2 years
