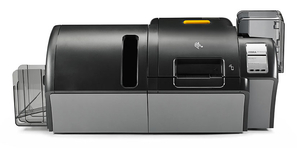

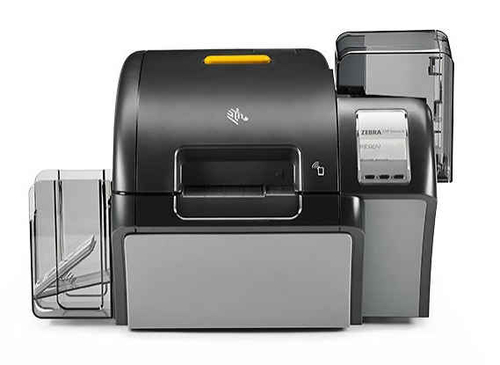

Zebra ZXP Series 9 - Single or Dual Sided ID Card Printer

Zebra ZXP Series 9 - Single or Dual Sided ID Card Printer

Vendor: zebra View brochure
Low Price Guaranteed

Single-Sided Encoding and Interface Options

# Name: Qty
Z91-000C0000US00 Zebra ZXP Series 9 Single-Sided Standard
Z91-0M0C0000US00 Zebra ZXP Series 9 Single-Sided Magnetic Encoder
Z91-A00C0000US00 Zebra ZXP Series 9 Single-Sided Contact Encoder + Contactless MiFARE
Z91-AM0C0000US00 Zebra ZXP Series 9 Single-Sided Contact Encoder + Contactless MiFARE, Magnetic Encoder

Dual-Sided Encoding and Interface Options

# Name: Qty
Z92-000C0000US00 Zebra ZXP Series 9 Dual-Sided Standard
Z92-000W0000US00 Zebra ZXP Series 9 Dual-Sided Wireless Networking
Z92-A00C0000US00 Zebra ZXP Series 9 Dual-Sided Contact Encoder + Contactless MiFARE
Z92-0M0C0000US00 Zebra ZXP Series 9 Dual-Sided Magnetic Encoder
Z92-AM0C0000US00 Zebra ZXP Series 9 Dual-Sided Contact Encoder + Contactless MiFARE, Magnetic Encoder

Dual-Sided with Single-Sided Laminator Encoding and Interface Options

# Name: Qty
Z93-000C0000US00 Zebra ZXP Series 9 Dual-Sided with Single-Sided Laminator Standard
Z93-0M0C0000US00 Zebra ZXP Series 9 Dual-Sided with Single-Sided Laminator Magnetic Encoder
Z93-AM0C0000US00 Zebra ZXP Series 9 Dual-Sided with Single-Sided Laminator Contact Encoder + Contactless MIFARE, Magnetic Encoder
Z93-A00C0000US00 Zebra ZXP Series 9 Dual-Sided with Single-Sided Laminator Contact Encoder + Contactless MIFARE

Dual-Sided with Dual-Sided Laminator Encoding and Interface Options

# Name: Qty
Z94-000C0000US00 Zebra ZXP Series 9 Dual-Sided with Dual-Sided Laminator Standard
Z94-0M0C0000US00 Zebra ZXP Series 9 Dual-Sided with Dual-Sided Laminator Magnetic Encoder
Z94-AM0C0000US00 Zebra ZXP Series 9 Dual-Sided with Dual-Sided Laminator Contact Encoder + Contactless MIFARE, Magnetic Encoder
Z94-000W0000US00 Zebra ZXP Series 9 Dual-Sided with Dual-Sided Laminator Wireless Networking
Z94-A00C0000US00 Zebra ZXP Series 9 Dual-Sided with Dual-Sided Laminator Contact Encoder + Contactless MIFARE
Z94-EM0C0000US00 Zebra ZXP Series 9 Dual-Sided with Dual-Sided Laminator Contact Station, Magnetic Encoder

Description

Quality, Dependability, Flexibility and Speed

Government, Education, Retail and Hospitality industries have an  ever-increasing focus on security, a need for flexibility and a continual demand for efficiency.

Outstanding Print Quality + Fastest Print Speeds

Produce durable, long-lasting, tamper-resistant cards with the sharpest photo-like image quality that boasts rich, consistent colors and strikingly sharp resolution. Industry-leading throughput allows you to print more cards faster—even with dual-sided lamination and encoding.

Valuable Cost Savings + Reduced Waste

Ensure security and reduce the likelihood of forgeries with best-in-class retransfer and laminate technology — including holographic images.

Experience extremely low cost-per-card operation with Zebra’s patented waste-free laminate technology featuring linerless media with a single core and no carrier. Reduce waste by 50% and save up to 30% in costs compared to the competition.

Smart Design + Flexible, Hassle-free Operation

Zebra’s patented dual-sided, simultaneous retransfer printing design eliminates the need for the printer to mechanically flip cards during production. This engineering makes throughput even faster, and it reduces the risk of costly mechanical errors and card jams.

Featuring multiple connectivity options including standard USB and Ethernet, along with optional Wi-Fi®(US and EU only), the ZXP Series 9 gives you the added flexibility you need to relocate your printer anywhere within your network. And, the printer’s new user-selectable print quality mode gives you more options and control.

Exclusive Color Predictive Technology

Zebra’s exclusive Color Predictive Technology (CPT) delivers superior, photo-like image quality. Based on patented image-processing algorithms, Zebra’s CPT constantly monitors printing and instantaneously adapts printer settings to automatically produce the highest print quality—time after time, card after card.

Specifications

PRINTING

  • Dye diffusion retransfer
  • Full color or monochrome retransfer printing
  • Single-sided printing
  • Max print speed single-side 190 cph*
  • User-selectable print modes: standard and fine
  • Photo-quality images
  • Over-the-edge printing on standard CR80 media

STANDARD FEATURES

  • USB and Ethernet connectivity
  • Single-card feed capability
  • 150 card capacity feeder (30 mil)
  • 15 card capacity reject hopper (30 mil)
  • 100 card capacity output hopper (30 mil)
  • i Series™ intelligent media technology
  • Auto-calibration of media
  • 21-character, 6 line LCD operator display
  • 304 dpi (12.0 dots/mm) print resolution
  • 64 MB memory standard
  • Lifetime warranty on printhead
  • 2-year limited warranty on printer
  • Microsoft ® Windows certified drivers
  • Kensington physical lock capable

OPTIONS AND ACCESSORIES

  • Lockable enclosure/card feeder
  • Zebra OneCare service programs
  • Card input hopper (150 cards 30 mil)

ENCODING OPTIONS & SPECIFICATIONS

  • ISO 7816 Smart Card Contact Station for third-party external contact encoders
  • Encoding over Ethernet

ZMOTIF SOFTWARE

  • ZMotif SDK support and sample code
  • Microsoft Windows Certified Printer Drivers with toolbox utility features: Windows 8, Windows 2012, Windows 10, Windows 2008, Windows 7
  • CardStudio card design and issuance software
  • Zebra Virtual PrintWare software support

Driver Features

  • Graphical card orientation setting to visualize card printing setup and configuration
  • Card source and card type selection
  • Complete graphical control over area and element selection of black extraction parameters
  • Auto sensing of ribbon type, laminator and smart card encoding options

Toolbox Utility Features

  • Printer configuration tools and utilities for complete control over all printer functions and features
  • Optional password protection settings and user role-based security settings prevent accidental or unauthorized driver or printer configuration changes
  • Complete technology card management enables setup and testing of all printer and encoder features and functionality
  • Printer test cards and diagnostics utilities ensure error-free printing and fast troubleshooting capabilities

ZMOTIF SDK

  • Downloadable SDK for custom applications
  • SDK enables third parties to quickly add advanced print and encoding features to the ZXP Series 9 printer
  • Capabilities include direct access to PC/SC Smart Card encoder driver and job control over print job specifications
  • Support for complete Uv printer and inhibit panel support

SUPPLIES

  • Zebra i Series intelligent technology uses RFID tags to authenticate and automate color ribbons, transfer film and laminate
  • Specially designed cleaning supplies simplify preventative maintenance

True Colours i Series Ribbon:

  • YMCK 4 panel: 625 images/roll
  • YMCKK 5 panel: 500 images/roll
  • YMCUvK 5 panel: 500 images/roll
  • YMCKI 5 panel: 500 images/roll
  • YMCKKI 6 panel: 415 images/roll
  • YMC 3 panel: 800 images/roll
  • Monochrome black: 2500 images/roll
  • True Colours i Series Transfer Film:
  • Clear: 1250 single-sided/625 dual-sided cards/roll

CARD SPECIFICATIONS

  • Card thickness: 30 — 40 mil
  • Card size: ISO 7810 format, Type ID-1, CR-80 size
  • Card material: PVC and composite, ABS cards, PET, PET-G, and Teslin® composite**
  • Specialty cards: transparent (IR-blocked) or translucent card 30 mil (clear and colored)**
  • Technology cards: contact and contactless smart cards, UHF cards**

COMMUNICATIONS INTERFACES

  • USB 2.0
  • USB supports plug-and-play printer identification
  • 10/100 Ethernet

ELECTRICAL

  • Auto-switching single-phase AC power
  • 100V~240V AC and 50-60 Hz

PHYSICAL Printer

  • Height (w/ card hoppers): 13.2”/334 mm
  • Width (w/ card hoppers): 18.75”/476 mm
  • Depth: 20.4”/519 mm
  • Weight (printer only): 27.5 lbs./12.5 kg

ENVIRONMENTAL

  • Operating Temperature: 59º F/15º C to 95º F/35º C
  • Storage Temperature: 23º F/-5º C to 131º F/55º C
  • Operating Humidity: 20% to 80% inclusive, non-condensing
  • Storage Humidity: 10% to 90% inclusive, non-condensing
  • Shipping Temperature: -40º F/-40º C to 140º F/60º C
  • Shipping Humidity: 10% to 90% inclusive, non-condensing
  • Media should not be above 140º F/60º C for longer than 200 hours, and above 90% relative humidity at 104º F/40º C for longer than 100 hours

NOTE: For optimum print quality and printer performance, use of Genuine Zebra supplies is recommended.

* Print speed based on click to drop, average print coverage, with USB connectivity, card per hour (cph)

** Please contact your Zebra reseller for qualification of card
